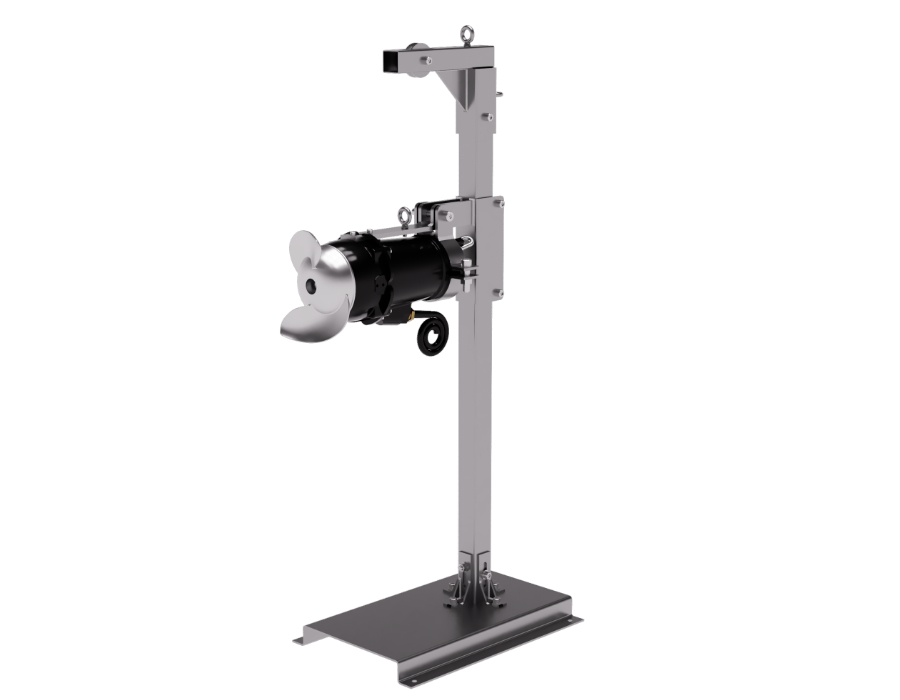

Mixer – MD Series
Submersible mixers are energy efficient suitable for a wide range of applications in industry and municipal treatment plants. They provide the right solution to match mixing tasks for agitating, blending, mixing, dissolving and suspension of solids in industry and municipal treatment plants.
Maximum Flow | upto 1558m³/h |
Head | upto 22m, Axial Force : 912N |
Speed | 960/1450RPM |
Impeller Type | NA |
Outlet Size | NA |
Power | upto 3.4kW |
Liquid Temperature | upto 40°C |
Max Solid Size | NA |
Shaft Seal | NA |
Material of Construction (MOC) | Motor – CI with 0.3% Cu, Ni and Mo, Blades – Stainless steel |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20m |
Maximum Working Pressure | upto 2.2 bar |
- Stainless steel blades
- Wide range of curves
- Inbuilt thermal overload protector and moisture sensor in specific ranges
- Optimized self cleaning propeller
- Mixing up and handling of liquids with suspended solids
- Mixtures of high viscous liquids in chemical and process industry
