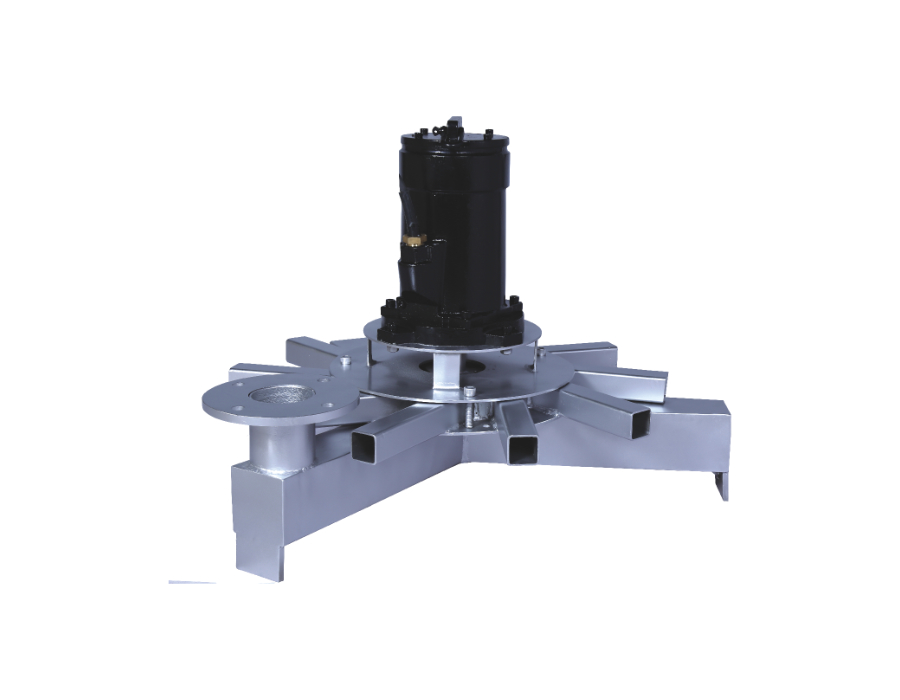

Diffuser Type Aerator – AR Series
In diffuser type aerator, the liquid flow generated by an impeller causes negative pressure to form on the impeller vanes and draw in air from atmosphere. The aspirated air mixed with water viciously by mechanical forces inside the impeller and guide van transform into tiny bubbles. Moreover, the mixed flow of air and water is evenly discharged in multiple directions along the circumference. The compounded action of the air lift and convective currents that are generated in the process makes aeration and agitation very efficient and increases the amount of oxygen dissolved in the water.
Oxygen Transfer | 1 – 9 kg O2/hr |
Maximum Air Intake | upto 125 m3/hr |
Speed | 1450 / 2850 RPM |
Impeller Type | Semi open Impeller |
pH ranges | 6 to 12 |
Power | 1.6 to 5 kW |
Liquid Temperature | upto 40°C |
No.of Starts per Hour | 20 |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | CI |
Insulation Class | H |
Maximum Immersion Depth | 20m |
Maximum Noise Level | ≤ 70dB |
- InbuilT moisture sensor and thermal overload protector
- Dual mechanical seal
- Sewage and effluent treatment plant
