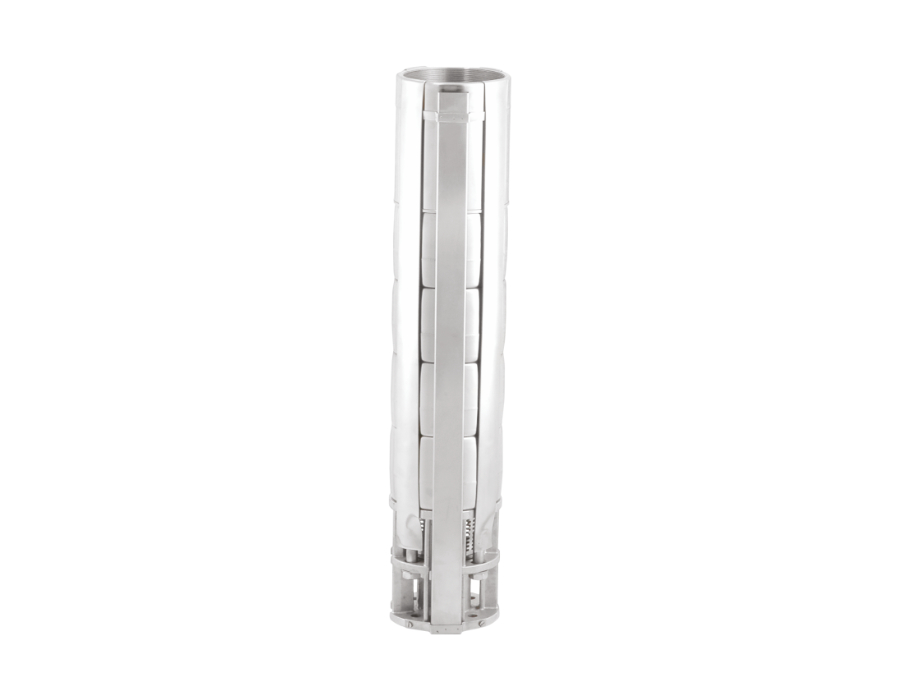

8″ Stainless Steel Submersible Pump
C.R.I. stainless steel deep well / bore hole submersible pumps are single or multistage type supplied with mixed flow impeller for higher flow and head requirement. These pumps are made up of corrosion resistant stainless steel material for long life. The pump shaft is supported with radial bearing on each casing for prolonged life and trouble free operation. And also, we provide neck / wear ring on impeller and casing to maintain close clearance for better efficiency and to minimise the wear and tear. Built in check valve prevents back flow and reduces the risk of water hammer effect. All mounting dimensions are in accordance with NEMA standards.
Nominal Diameter | 8″ |
Power Range in kW | 5.5 – 130kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate in m³/h | 126 m3/h |
Maximum Head in Metre | 518 m |
Outlet Sizes in Inches | 4″ & 5″ |
- High efficiency
- Wide hydraulic ranges
- Corrosion resistant stainless steel pump components
- Additional bearing bracket support for higher stage pump
- Can be easily dismantled and repaired
- Water supply
- Industries
- Agriculture
- Commercial buildings
- Pressure boosting
- Livestock watering
- Fire fighting
- Sprinkler system
- Construction & mining De-watering
- Fountain
