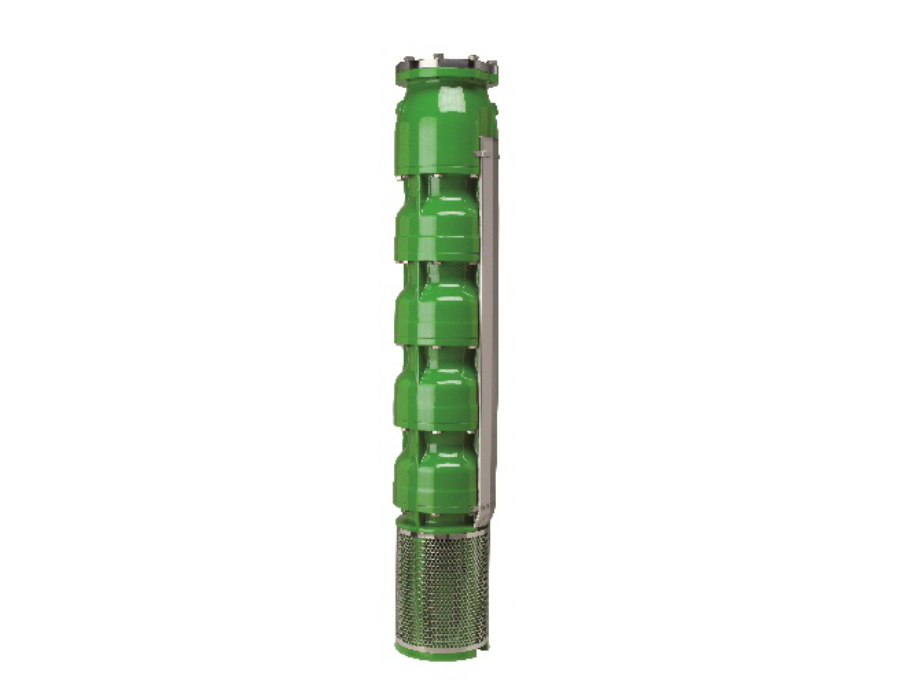

12″ Evergreen submersible pumps
C.R.I. 12″ Evergreen deep well / bore hole submersible pumps are single or multistage type supplied with mixed flow stainless steel impellers for higher flow and head requirement. The pump shaft is supported with radial bearing on each casing / bowl for prolonged life and trouble free operation. And also, we provide neck / wear ring on casing to maintain close clearance for better efficiency and to minimise the wear and tear. Built in check valve prevents back flow and reduces the risk of water hammer effect. All mounting dimensions are in accordance with NEMA / International standards.
Nominal Diameter | 12″ Evergreen submersible pumps |
Power Range in kW | 45 – 250kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate in m³/h | 540 m³/h |
Maximum Head in Metre | 320 |
Outlet Sizes in Inches | 7″ |
- High efficiency
- Wide hydraulic ranges
- Bush bearing support in each casing
- Rigid and rugged construction
- Water supply
- Industries
- Agriculture
- Commercial buildings
- Pressure boosting
- Livestock watering
- Fire fighting
- Sprinkler system
- Construction & mining De-watering
