Slurry submersible pumps are designed for pumping liquid containing solids and abrasive particles. Slurry pump changes in design and construction to adjust to multiple type of slurry which varies in the concentration of solids, size of solid particles, shape of solid particles, and composition of solution types.
Working of slurry pumps
An impeller in a slurry pump imparts a circular motion by allowing slurry to enter the impeller’s eye. Centrifugal force forces the slurry outward and between the blades of the impeller. By the time the slurry reaches the impeller’s edge, it has reached a high speed. Pumps increase the pressure of liquids and solids with centrifugal force, converting electric energy into kinetic energy to pump the slurry.
Benefits of Slurry Pumps
- Easy to maintain
- Low investment costs
- Simple mechanism
- Robust machinery
- Stainless steel material to reduce wear and tear

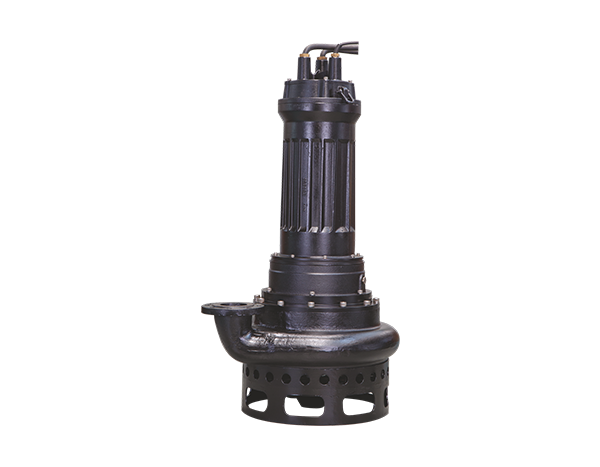

SN series
Slurry submersible pumps are designed for pumping liquid containing solids and abrasive particles. Slurry pump changes in design and construction to adjust to multiple type of slurry which varies in concentration of solids, size of solid particles, shape of solid particles, and composition of solution. Dynamically balanced Hi-Chrome impellers are used for reliable operation which is basically white iron with 25% chromium added to make it less brittle. Slurry pumps are widely used in transport of abrasive solids in industries such as mining, dredging, power and steel.
Maximum Flow | upto 160m³/h |
Head | upto 34m |
Speed | 960RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | upto 100mm |
Power | 18 & 25kW |
Liquid Temperature | upto 40°C |
Max Solid Size | upto 10mm |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | CI with 0.3% Cu, Ni and Mo, Hi-Chrome |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20m |
Maximum Working Pressure | upto 3.4 bar |
- Non clog Hi-Chrome impeller
- Large free passage
- Pump with agitator for effective mixing and pumping
- Dual mechanical seal
- Mine tailings
- Power plant ash
- River and lagoon silt
- Steel slag
- Rolling mill scale
- Sewage and waste water
- Flood control
- Contruction dewatering
