Peripheral pumps

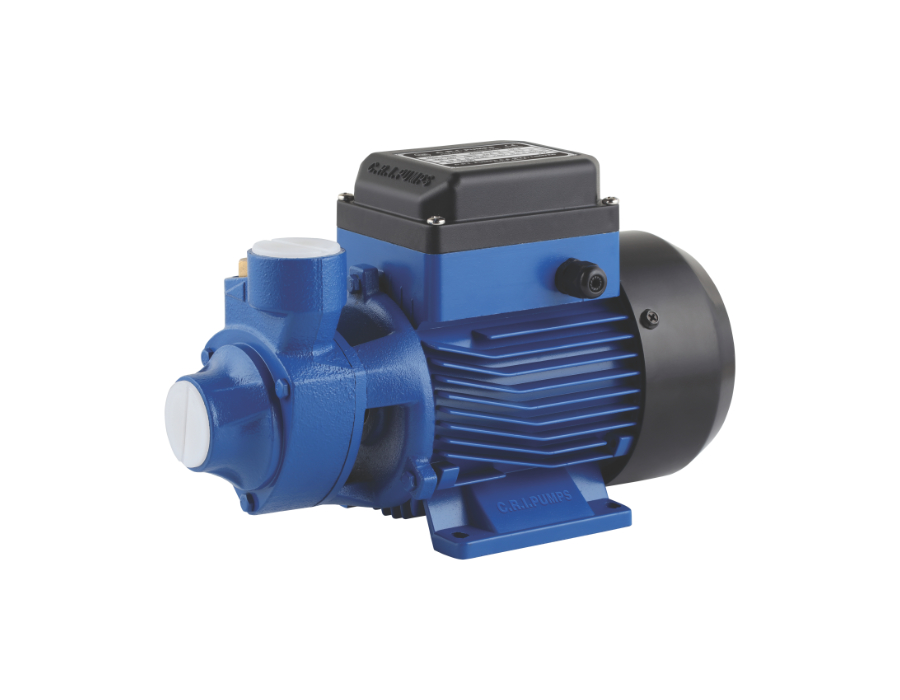

C.R.I. Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eleminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.
Power Range( kW) | 0.37 & 0.75 kW |
Speed | 2900 rpm |
Versions | Single phase, 230V, 50Hz, A.C. Supply |
Type of Duty | S1 Continuous Duty |
Degree of Protection | IP 54 |
Class of Insulation | B |
Maximum Discharge | Upto 2.2 m³/h |
Maximum Head | Upto 55m |
Max.Suction Lift | Upto 7 m |
Sealing Type | Mechanical Seal |
Max.Liquid Temperature | 30°C |
Max.Ambient Temperature | 40°C |
Max.Operating Pressure | 6 bar |
Flange Standard | Manufacturer Standard |
Suction Flange Size in mm | 25 |
Delivery Flange Size in mm | 25 |
- Silent operation
- Sturdy and compact
- Thermally protected motor
- Residence
- Gardens
- Sprinkler systems
- Fountains
