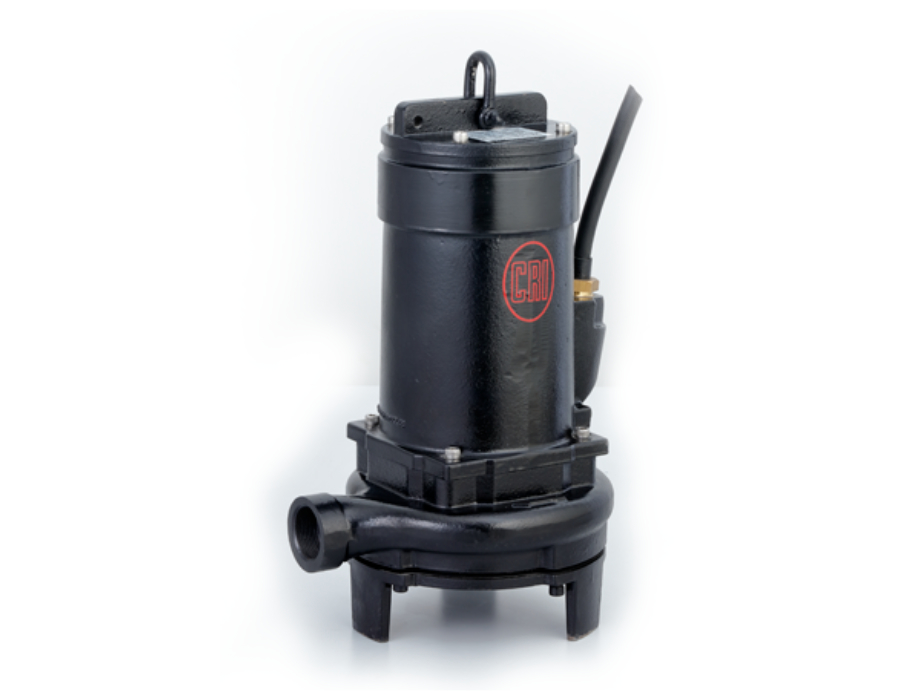

GT Series
GT Series wastewater pumps from CRI Fluids have a stainless cutter and minimizes the risk of clogging. They can be used for pumping sewage liquids with suspended solids in textile and food industry and in hospitals and commercial buildings.

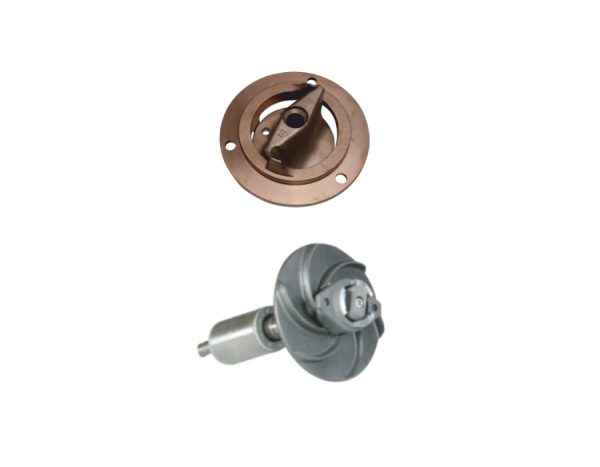

GT Series pumps are designed to handle raw sewage, waste water and heavy duty industrial applications where the pump is subject to clogging from over sized materials. Cutter pumps are generally offered with vortex impeller. A cutting device and hard iron serrated casing cover provided in the pump to cut the incoming materials into pieces, permitting smooth passage through the pump into the discharge piping. A cutter pump’s job is also to reduce the size of the solids. Cutter pumps are typically used to address clogs and rags.
Maximum Flow | to 120gpm |
Head | to 186ft |
Speed | 3450 RPM |
Impeller Type | Vortex with cutter |
Outlet Size | to 1½” |
Power | to 8HP |
Liquid Temperature | to 104°F |
Max Solid Size | to ¼” |
Shaft Seal | Mechanical seal |
Material of Construction (MOC) | Cast Iron with 0.3% Cu, Ni and Mo |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 66ft |
Maximum Working Pressure | to 6bar |
- Minimized risk of clogging & minimum wear and tear
- Stainless steel cutter
- Serrated cover for grinding into small pieces
- Inbuilt thermal overload protector in specific ranges
- For pumping sewage liquids with suspended solids
- Textile and food industry
- Hospitals and commercial building
