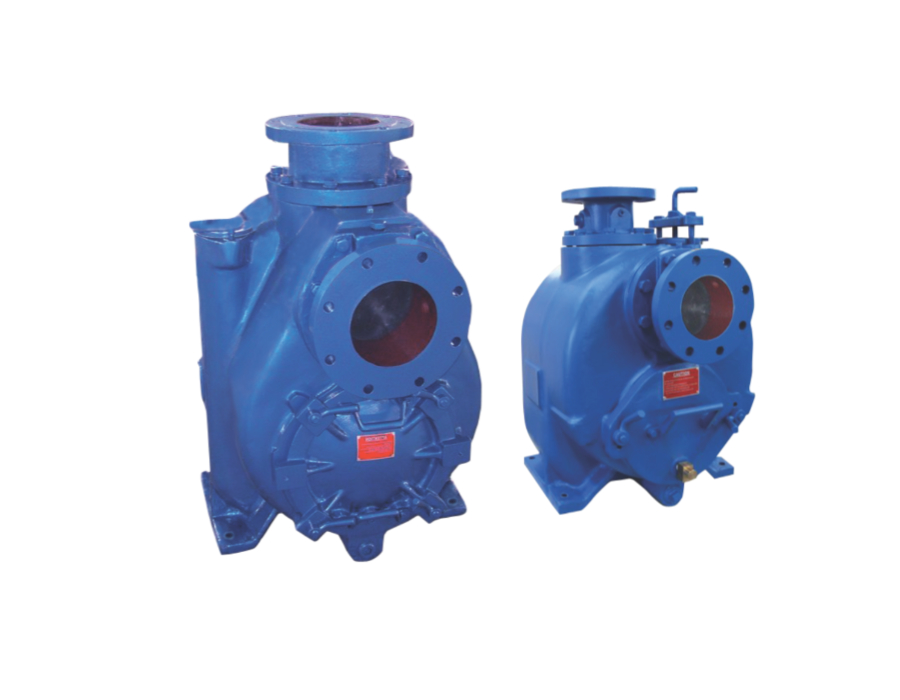

ECN Series
CRI Fluids offers ECN Series that are non clog self-priming pumps. They are designed to handle raw water, muddy water, sewage and liquid with semi solids
Non clog self-priming pumps are designed to handle raw water, muddy water, sewage and liquid with semi solids. These pumps are supplied as bare pump or coupled with engine or motor. Engine coupled pump frame is designed to supply fuel for 24hours operation and it can be offered with off highway four-wheel solid rubber tyres. The custom-made mechanical seal in pump provides perfect sealing and leak free operation.
Maximum Flow | to 5635gpm |
Head | to 194ft |
Speed | to 1800 RPM |
Impeller Type | Semi Open Impeller |
Outlet Size | to 12″ |
Power | to 125HP |
Liquid Temperature | to 104°F |
Max Solid Size | to 3″ |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | Cast Iron and Stainless steel |
Bearing Lubrication | Oil |
Maximum Immersion Depth | 16ft to NA |
Maximum Working Pressure | to 6 bar |
- Customized engine option with air cooled or water cooled engines
- Diesel tank for 24 hours fuel back up
- Automatic self priming and re-priming set up
- Off high way trolley option
- Municipal utility
- Flood control
- Emergency pumping
- Marine
- Dewatering in mining and construction
