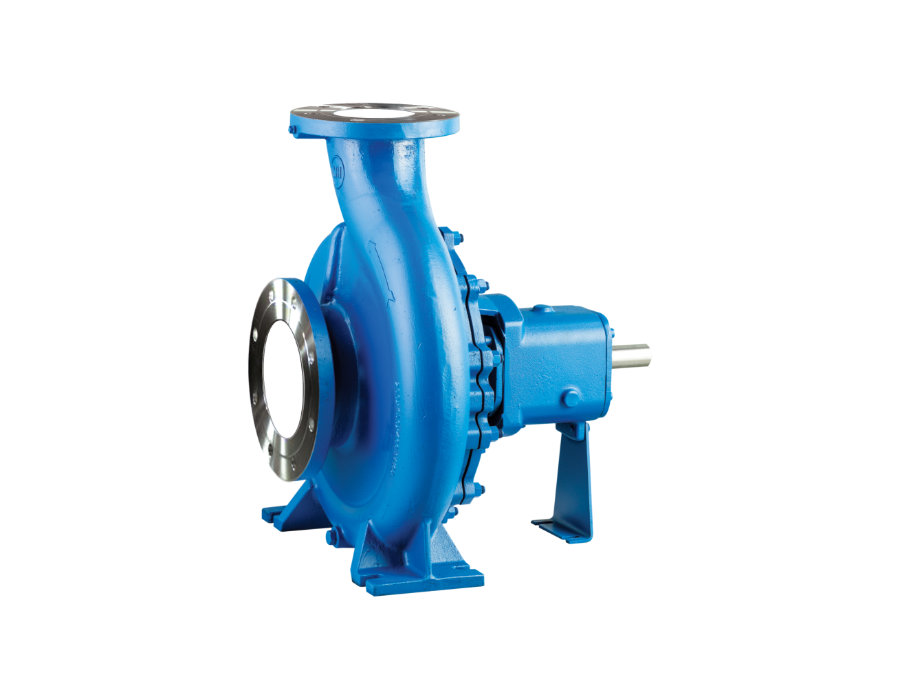

ECW Series
ECW Series is designed as per EN 733 standards and they are most suitable for water supply for irrigation, HVAC , and fire fighting. They ensure noise-free operation and long life.
ECW series are single stage, end suction, back pull out, top centreline discharge type. These are offered with different material of construction to handle clear and slight raw water. Dynamically balanced impeller ensures vibration and noise free operation for long life. Mounting and duties are in accordance with EN 733 with DIN flanges suitable for continuous operation.
Standard | EN 733 |
Head | to 524ft |
Maximum Flow | to 2641gpm |
Speed | 1700/3450 RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | to 6″ |
Power | to 268HP |
Liquid Temperature | to 194°F |
Max Solid Size | Not Applicable |
Shaft Seal | Gland Packing, Mechanical Seal |
Material of Construction (MOC) | Cast Iron, Bronze, Stainless Steel & Alloy steel |
Bearing Lubrication | Prelubricated sealed brearing |
Flange Standard | DIN |
Maximum Working Pressure | to 16 bar |
- Back pull out design
- Mounting dimensions and duties as per EN733 standard
- Wide hydraulic ranges
- Pre lubricated sealed bearing ensures long life
- Water supply
- Irrigation
- Pressure boosting
- Heating, ventilation and air conditioning system
- Fire fighting systems
- Circulation and transfer application
- Utility services in buildings and industries
