Pump Control Box in USA | CRI Fluid Systems

Drives & Controls

Pump control boxes are responsible for monitoring the flow of water and controlling a water pump to keep it at the desired level.

Description

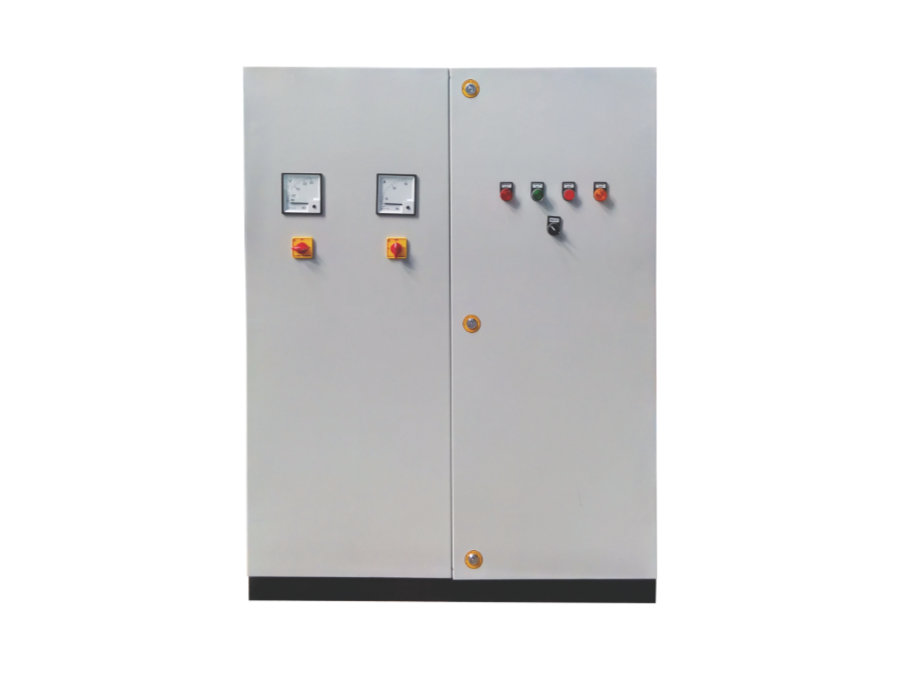

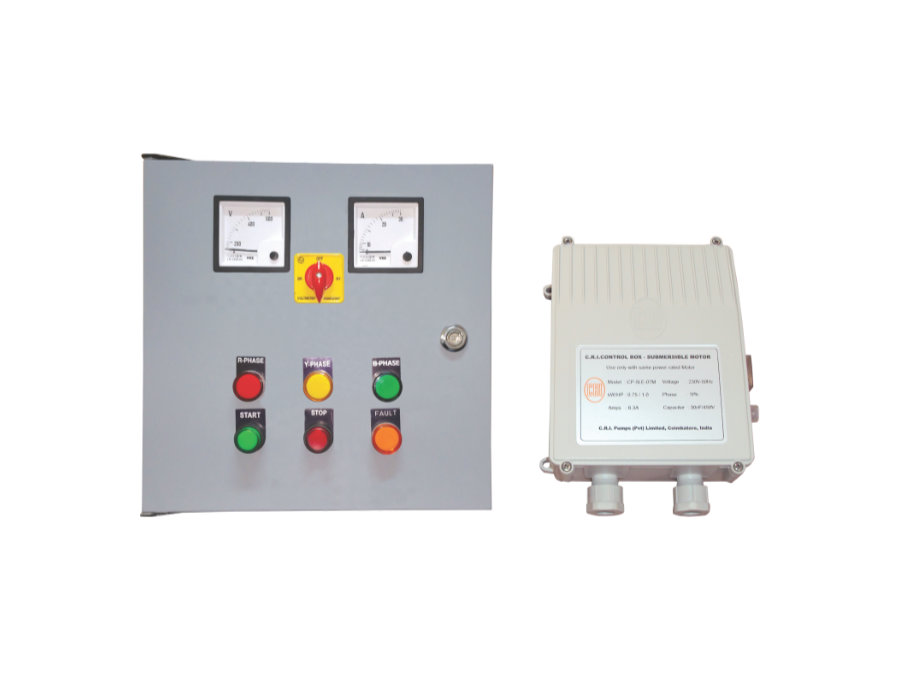

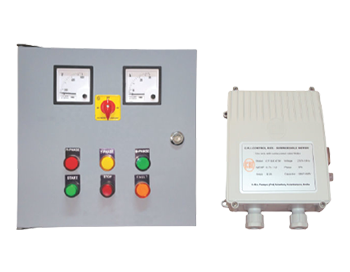

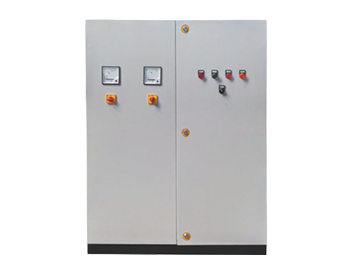

C.R.I control panels are made of quality components and designed with various features to give ultimate protection to the prime movers such as submersible motors and centrifugal pumps. Three -phase control panels are available which can be selected according to the control measures and features required

Specification

Specifications	Single Phase Control Box	Three Phase
Specifications	Single Phase Control Box	DOL Starter	Star-Delta(SD) Starter	Impedance Starter	Soft Starter	Variable Frequency Drive(VFD)
Power Range	0.37 kW - 2.2 kW	0.37 kW - 93 kW	0.37 kW - 350 kW	0.37 kW - 185 kW	0.37 kW - 530 kW	0.37 kW - 18.5 kW
Version	220V , Single Phase,60Hz,A.C	380V - 415V, Three Phase,60Hz,A.C	380V - 415V, Three Phase,60Hz,A.C	380V - 415V, Three Phase,60Hz,A.C	380V - 415V, Three Phase,60Hz,A.C	220V - 380V ,Three Phase,60Hz,A.C
Type	"Capacitor Start & Run (CSR) Capacitor Start and "	-	-	-	-	-
Ingress Protection	IP 52	Standard - IP 52 Optional - IP 55 & 65	Standard - IP 52 Optional - IP 55 & 65	Standard - IP 52 Optional - IP 55	Standard - IP 52 Optional - IP 55	IP 42
