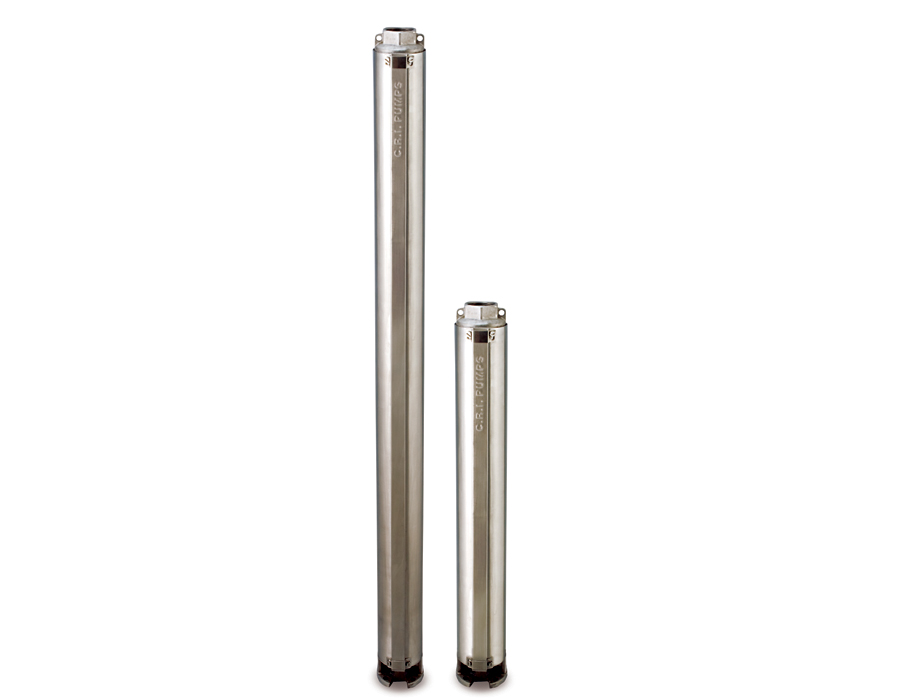

4″ Sliverline Series
C.R.I. Silver line Series deep well / bore hole submersible pumps are multistage centrifugal type supplied with radial or mixed flow impellers for higher head and flow requirement. All the metal and non-metal components that come into contact with the liquid are made of stainless steel and food grade engineering thermoplastic. The optimized hydraulic design offers maximum efficiency at deeper installation. Floating impeller design can handle little higher sand than the normal pump and reduce the down thrust load that is transferred to motor. All mounting dimensions are in accordance with NEMA standards.
Nominal pump size | 4″ |
Power Range | ½HP – 10 HP |
Speed | 3450 rpm |
Maximum Flow | Upto 114 gpm |
Maximum Head | Upto 1400 ft |
Outlet Sizes | 1¼”, 1½” & 2″ |
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
- NEMA mountings
- Residence
- Agriculture
- Gardens
- Sprinkler systems
- Fountains
- Building services
