Submersible water pumps are an excellent tool for agriculture, domestic and commercial operations. Operated by hermetically sealed motors, these submersible water pumps are used–as their name suggests–to pump out the liquid from which they’re fully submerged. Since submersible water pumps are completely submerged, pump cavitation is avoided, and the water pump can function without interruption.
CRI Fluids submersible water pump comes with a Motor with an inbuilt capacitor hence separate control box is not required.

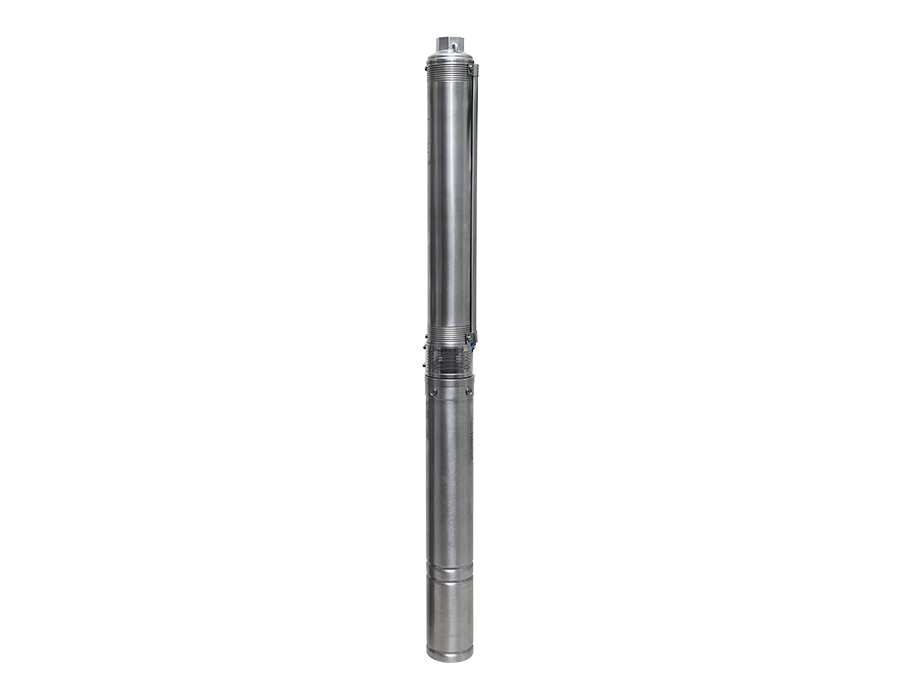

3” PMA’s Series
C.R.I. 3” PMA’s are designed for pumping liquid from deep wells. All the metal and non-metal components that come into contact with the liquid are made of stainless steel and food grade engineering thermoplastic. The optimized hydraulic design offers maximum efficiency at deeper installation. Floating impeller design can handle little higher sand than the normal pump and reduce the down thrust load that is transferred to motor. The pump is firmly coupled to a 3” 2 wire rewindable submersible electric motor for continuous duty. Dynamically balanced rotor and quality bearing ensures vibration and noise free operation and thereby increase the life cycle of pumpset.
Nominal pump size | 3″ |
Power Range | ½HP – 1½HP |
Speed | 3450 rpm |
Maximum Flow | Upto 31 gpm |
Maximum Head | Upto 530 ft |
Outlet Sizes | 1″ |
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
- Motor with inbuilt capacitor hence separate control box is not required
- Residence
- Gardens
- Sprinkler systems
- Fountains
- Building services
