Rewindable motors are built for dependable operation in larger water wells. Water lubricated radial and thrust bearings for maintenance-free operation are fitted in a rewindable submersible motor.A special diaphragm ensures pressure compensation inside the motor.The rewindable submersible motor is filled with motor liquid ensuring sufficient lubrication of radial bearings.
CRI Fluids rewindable submersible motor technology reduces the risk of hot spots in the motor as the liquid inside has a uniform contact with active parts.

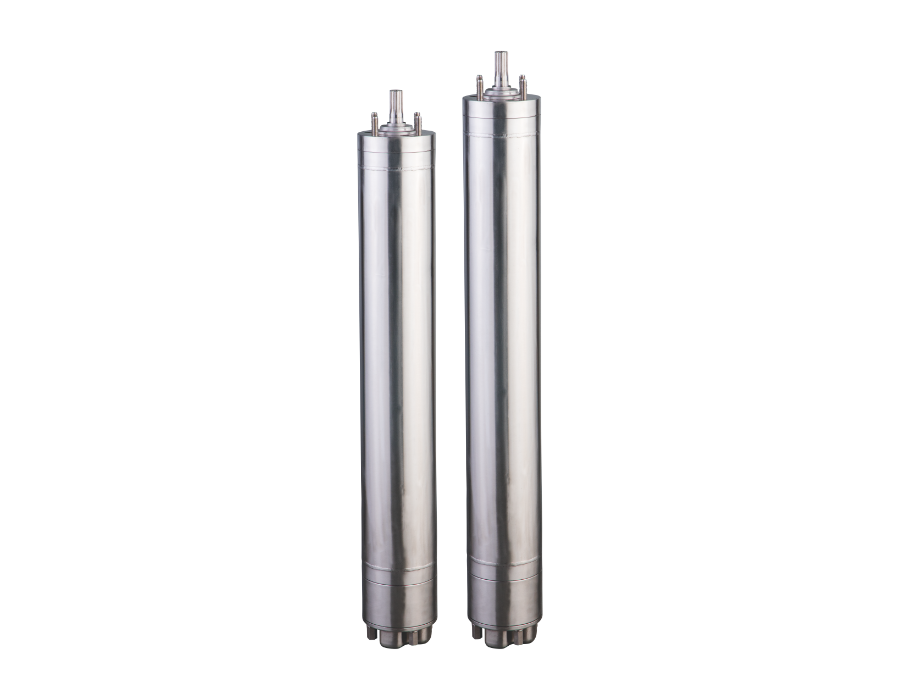

6″ Water Filled Rewindable Submersible Motors
C.R.I. "W series" motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply and suitable for both normal & high temperature applications. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.
Nominal Diameter | 6" |
Series | Water Filled Rewindable Submersible Motors |
Power Range (kW) | 5.0HP - 60HP - Three Phase |
Speed in RPM | 3450 |
Versions | Three Phase - 230V , 380V, & 460V 60Hz |
Maximum Down Thrust Load | 5.0HP - 30HP - 3500 lbs 35HP - 60HP - 6000 lbs |
Type of Duty | S1 (Continuous) |
Degree of Protection | IP 68 |
Class of Insulation | Y |
Max.Temperature of Liquid | Standard - 86˚F , High Temperature - 122˚F |
Minimum Cooling Flow Along the Motor | 0.5 ft/sec |
Maximum Starts Per Hour | 12 Times |
Available M.O.C | Type A,B,N ,S & T |
- High efficiency
- Water lubricated rewindable motor
- Corrosion resistant stainless steel motor body
- Extremely hardwearing and water lubricated bearings
- Special design for hot water
- Can be easily dismantled and repaired
- Water supply
- Industries
- Agriculture
- Commercial buildings
- Pressure boosting
- Livestock watering
- Fire fighting
- Sprinkler and pivot irrigation system
- Construction & mining De-watering
