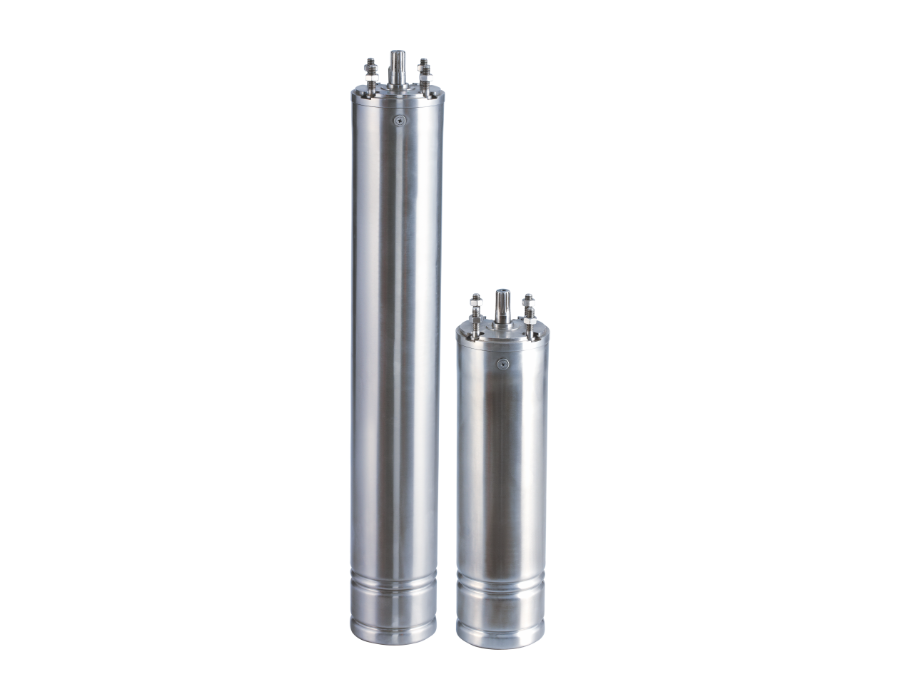

4″ Oil Filled Rewindable Submersible Motors

Description

C.R.I. "L series" motors are deep well / bore hole rewindable submersible type, pre filled with non-toxic edible oil. These motors are suitable for installation upto 150 meters and available in single phase and three phase power supply. Rotors are supported with ball and angular contact bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.

Specifications

Nominal Diameter	4"
Series	“L” Series
Power Range	½HP - 3.0HP - Single Phase - 3 Wire , ½HP - 2.0HP - Single Phase - 2 Wire, ½HP - 10HP - Three Phase - 3 Wire
Speed	3450rpm
Method of Starting	Single Phase - 0.5HP - 2HP Capacitor Start and Run (CSR - 2wire), Single Phase - 0.5HP - 3HP Capacitor Star and Run (CSR - 3wire), Three Phase - Direct On Line(DOL)
Versions	Single Phase - 230V, 60Hz, Three Phase -230V,380V & 460V, 60Hz
Maximum Down Thrust Load	½HP - 1.0HP - 337 lbs 1½HP - 4.0HP- 562 lbs 5HP – 10HP – 1012lbs
Type of Duty	S1 (Continuous)
Degree of Protection	IP 68
Class of Insulation	F
Max.Temperature of Liquid	86˚F
Minimum Cooling Flow Along the Motor	0.25 ft/sec
Maximum Starts Per Hour	Single Phase - 20 Times, Three Phase - 12 Times
Available M.O.C	Type A

Features

High efficiency
Heavy duty bearings
Corrosion resistant stainless steel motor body
Rigid and compact design
Can be easily dismantled and repaired

Applications

Residence
Agriculture
Gardens
Sprinkler systems
Fountains
Building services
