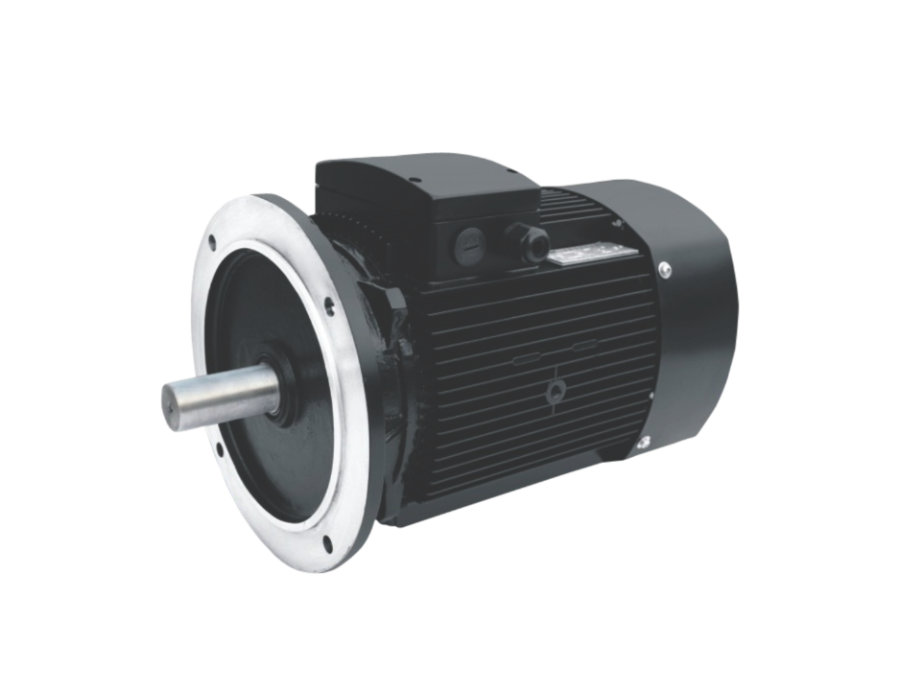

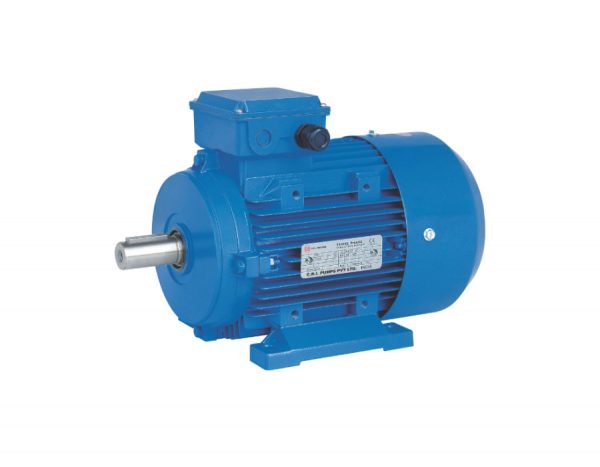

A.C. Induction Motors
A Comprehensive range of induction motors in standard and premium efficiency designs are suitable for wide range of applications in industries. Stator is made of low watt loss steel laminations suitable for continuous and reliable operation. Dynamically balanced rotor ensures vibration and noise free operation. The varinish impregnated windings are made of high grade enamelled copper wire, construction of motor frames and usage of quality materials results in high performance and low temperature rise thereby inreasing the life cycle of motor. Motors are available with standard and premium efficiency levels as per customer requirements.
Mounting Type | Foot / Flange / Foot cum flange /Face Mounted motors (B3, B5, B35, B14) |
Power Range in HP | ½HP to 3.0HP, 1PH |
½HP to 422HP, 3PH | |
Rated Voltage | 230/380/460 V, 3PH |
230V, 1PH | |
Frequency | 60Hz |
Pole & Speed | 2/4/6 Pole & 1200/1750/3500 RPM |
Connection | CSCR, 1PH |
DOL /SD, 3PH | |
Ingress Protection | IP 55 |
Class of Insulation | Class – F |
IEC Efficiency Class | IE1, IE2 & IE3 |
- Varnishing by Vacuum Pressure Impregnation(VPI) process
- Thermister and space heater on higher HP motor
- Canopy on request
- Triple voltage design
- To be coupled with pump and other industrial equipments
