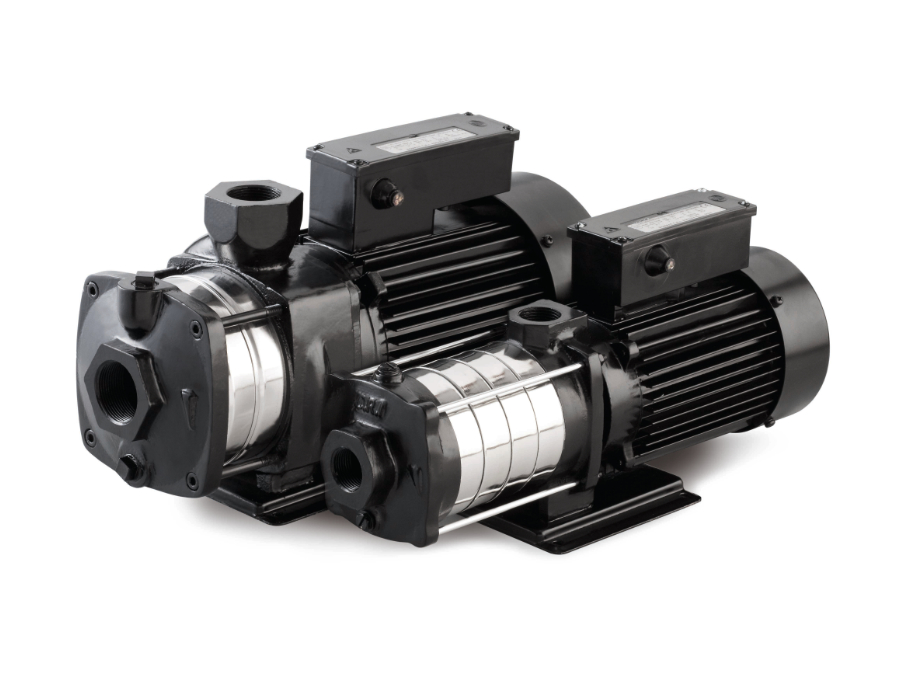

Horizontal Multistage Pumps – MH Series
C.R.I “MH series” horizontal multistage pumps are end suction and top discharge type supplied with radial flow impeller for higher head requirement. These pumps are centrifugal monoblock type available in both single phase and three phase supply. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. All single phase pumps are thermally protected.
Power Range (HP) | 0.40 to 4.0 HP |
Speed | 3500 rpm |
Versions | Single phase – 230V, 60Hz, A.C. Supply, Three phase – 230V,380V & 460V, 60Hz, A.C. supply |
Duty | S1 Continuous |
Degree of Protection | IP 55 / IP 54 |
Class of Insulation | F/B |
Maximum Discharge | Upto 36 gpm |
Maximum Head | Upto 240 ft |
Shaft Seal | Mechanical Seal |
Max.Liquid Temperature | Upto 158˚F |
Max.Ambient Temperature | Upto 104˚F |
Max.Operating Pressure | upto 5.6 bar |
Flange Standard | Manufacturer standard |
Outlet Size in Inches | 1″& 1¼” |
- High efficiency
- Stainless steel impeller and casings
- ED coated cast iron parts
- Thermally protected single phase motors
- Different materials of construction
- Pressure boosting system
- RO System
- Utility water supply in residences, villas and industries
- Industrial washing and cleaning system
- Landscaping and gardens
