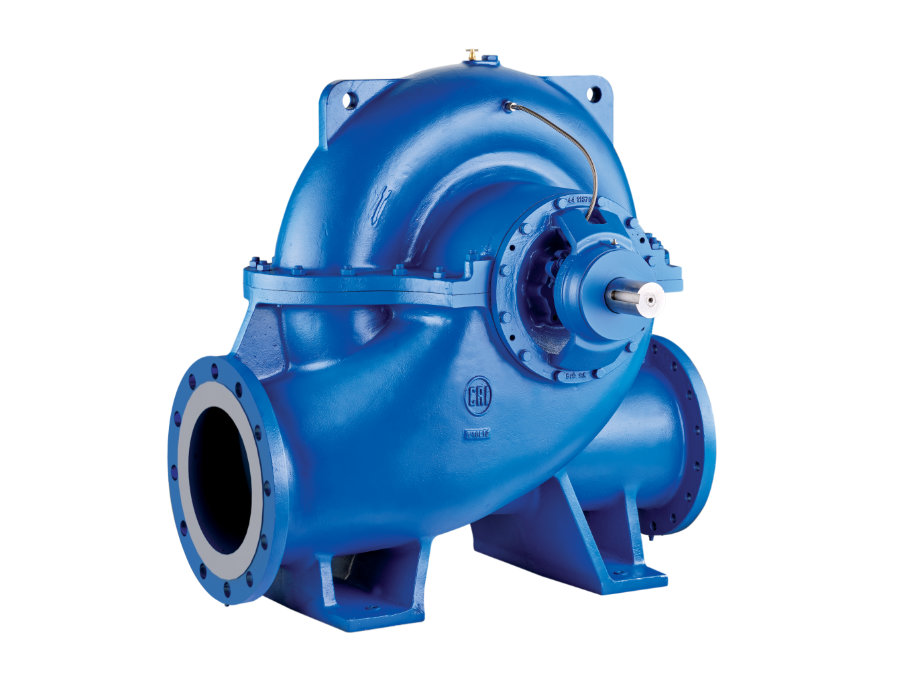

SCW Series
CRI Fluids offers SCW series Horizontal Split Case single-stage double suction centrifugal pumps. They are designed to deliver a higher rate of flow at the designed operating head. They have a rigid structure and come with a top pull out design. Some common applications are water supply, irrigation, HVAC, firefighting
Horizontal Split Case single stage double suction centrifugal pumps are designed to deliver higher rate of flow at designed operating head. Double suction impeller with between bearing design provides hydraulic balance, hence eliminating axial thrust. The casing is split axially with opposing suction and discharge flanges greatly simplifying maintenance. The inline suction and discharge nozzles are cast in the lower half casing. This design makes it easy to remove the upper casing and rotary components without disturbing the motor and pipe work.
| Standard |
Manufacturer Standard |
| Head |
to 490ft |
| Maximum Flow |
to 17611gpm |
| Speed |
1150/1700/3450 RPM |
| Impeller Type |
Enclosed Double Suction Impeller |
| Outlet Size |
to 18" |
| Power |
to 1206HP |
| Liquid Temperature |
to 194°F |
| Max Solid Size |
Not applicable |
| Shaft Seal |
Gland Packing, Mechanical seal |
| Material of Construction (MOC) |
Cast Iron, Bronze & Stainless steel |
| Bearing Lubrication |
Grease, Oil |
| Flange Standard |
ANSI |
| Maximum Working Pressure |
to 16 bar |
- Top pull out design
- Entire rotating unit assembly can be removed without disturbing pipe connection and prime mover
- Rigid and balanced design
- Double suction impeller
- Designed for maximum wear life
- Minimum down time and reduced life time costs
- Water supply
- Irrigation
- Fire protection
- HVAC systems
- Auxilliary and circulating cooling water supply in Power plants
- Cooling tower application in industries
- Water treatment plants
- Flood control
