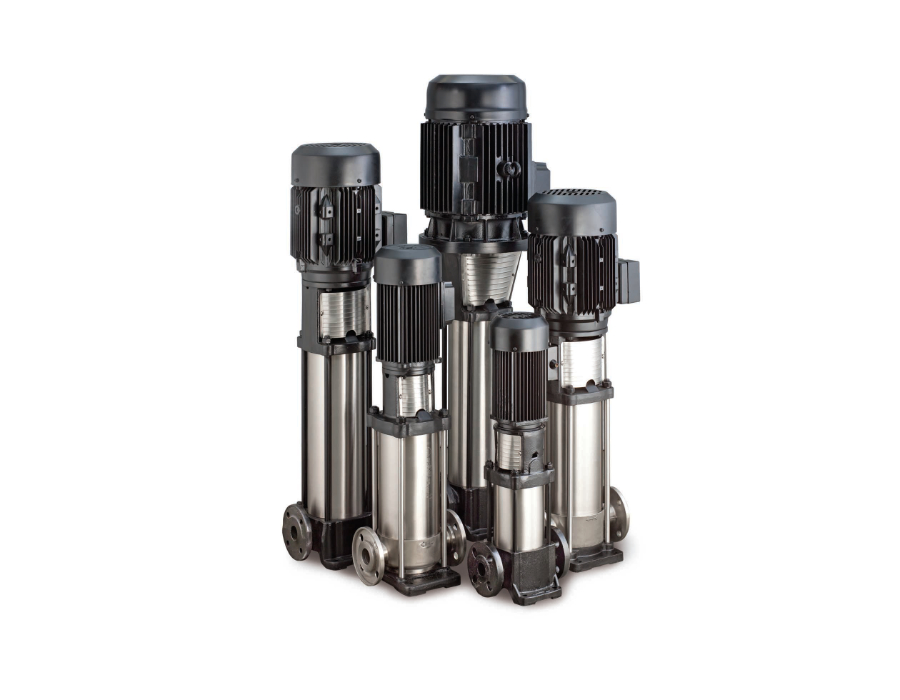

Vertical Multistage Pumps – MV Series
MV Series, Vertical multistage pump from CRI Fluids are suitable for high and constant pressure applications.The design results in space saving.
C.R.I “MV series” vertical inline pumps are multistage type supplied with radial and mixed flow impellers for higher head and flow requirement. These pumps are available in different materials of construction and all wetted parts are made up of corrosive resistant stainless steel material. The inline design simplifies the piping work and results in space saving compared to horizontal pumps. These pumps are ideally suitable for high and constant pressure applications. Inline pumps are offered with standard and high efficiency IEC / NEMA motors and DIN / ANSI flanges.
Power Range (HP) | 0.5 – 60 HP |
Speed | 3500 rpm |
Versions | Single phase – 230V, 60Hz, A.C. Supply, Three phase – 230V,380V & 460V, 60Hz, A.C. supply |
Duty | S1 Continuous |
Degree of Protection | IP 55 |
Class of Insulation | F |
Maximum Discharge | Upto 530 gpm |
Maximum Head | Upto 982 ft |
Shaft Seal | Mechanical seal |
Max.Liquid Temperature | ‘upto 194°F |
Max.Ambient Temperature | Upto 104˚F |
Max.Operating Pressure | upto 30 bar |
Flange Standard | ANSI /DIN |
Outlet Size in Inches | 1″ to 4″ |
- High efficiency
- Stainless steel wetted parts
- Thermally protected single phase motors
- Optional premium efficiency motors
- Different materials of construction
- Utility water supply in industries and buildings
- Pressure boosting system
- RO System
- High pressure application in industries
- Boiler feed
- Jockey application in fire fighting system
- Industrial washing and cleaning system
- Hot water transfer and circulation
- Agriculture
