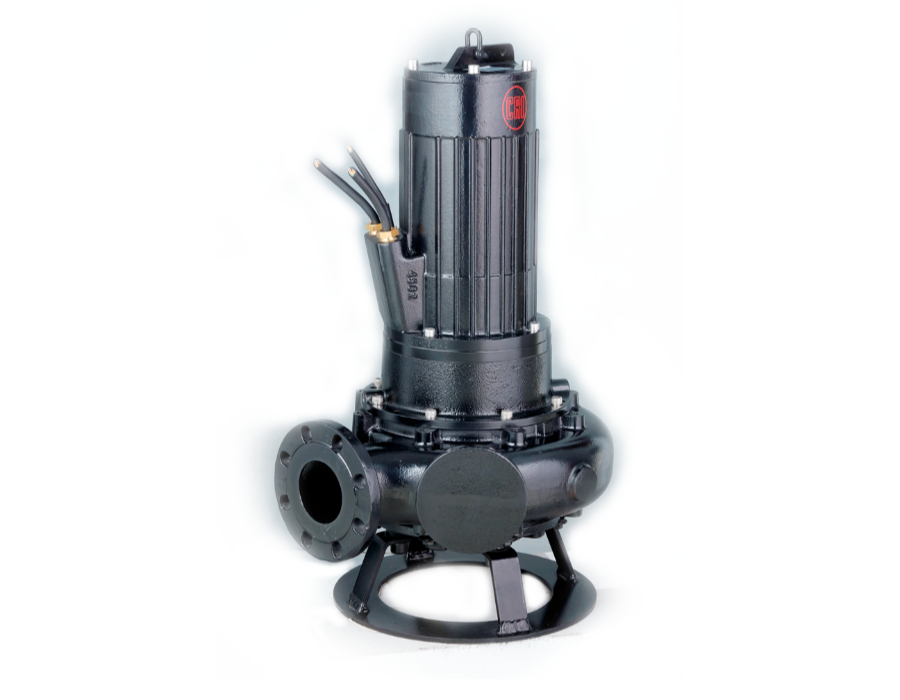

KC Series

Description

KC Series submersible sewage pumps are multi vane design used to improve performance with larger solid passage upto 6½” in diameter. The closed multi vane impeller for solids laden and muddy fluids offers the highest efficiency for waste water. These pumps are suitable for pumping municipal waste water, industrial waste water, land fill waste water, rain water and activated sludge etc.

Specification

Maximum Flow	upto 2520m³/h
Head	upto 66m
Speed	720/960/1450 RPM
Impeller Type	Mulit channel enclosed impeller
Outlet Size	upto 400mm
Power	upto 185kW
Liquid Temperature	upto 40°C
Max Solid Size	upto 165mm
Shaft Seal	Mechanical seal
Material of Construction (MOC)	CI with 0.3% Cu, Ni and Mo
Bearing Lubrication	Grease
Maximum Immersion Depth	20m
Maximum Working Pressure	upto 6.6bar

Features

Large free passage

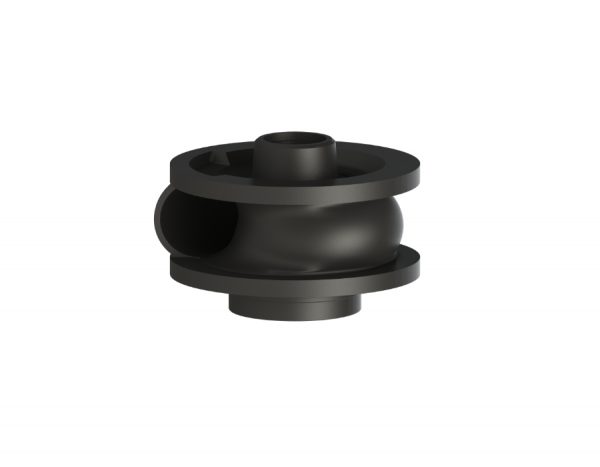

Non clog multi channel enclosed impeller
Inbuilt thermal protection and moisture sensor in specific ranges

Application

For pumping sewage and waste water, rain and storm water and industrial waste water
