Cables

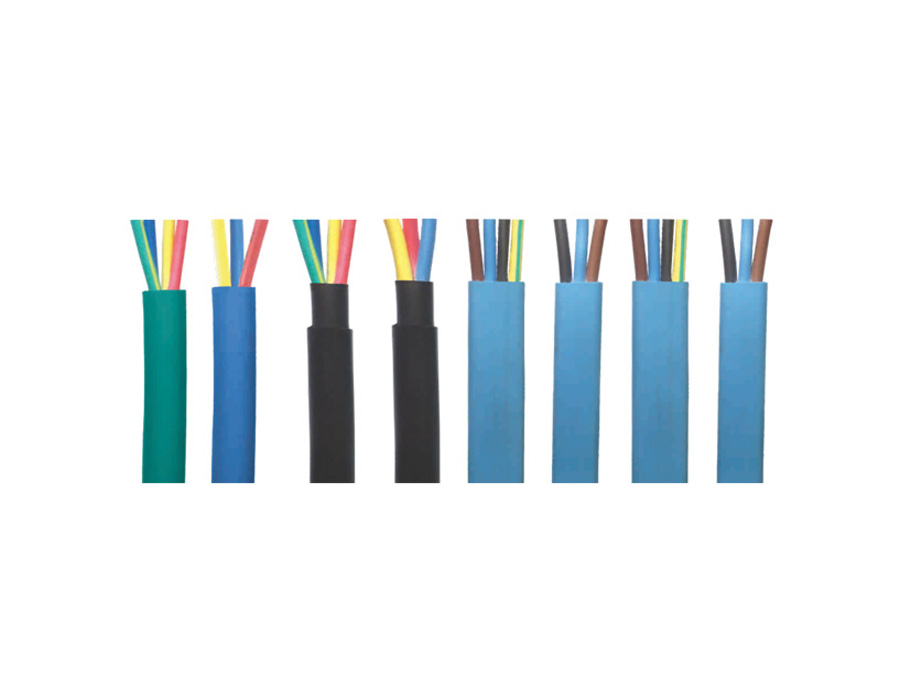

C.R.I submersible cables are produced in a well equipped, state of the art manufacturing facilities and using 99.97% pure bright electrolytic copper with low conductor resistance for high current carrying capacity. The insulation coating is done with superior grade Rubber / PVC compounds with high insulation resistance and higher thermal stability. Outer sheath is made up of special grade water proof Rubber / PVC compounds, which gives resistant to moisture, abrasion, grease, oil and other environmental effect.
Std Cable Sizes in Sq.mm | 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70 ,95 ,120 & 150 (1100V) |
Armoured Cable sizes in Sq.mm | 1.5, 2.5, 4, 6, 10, 16, 25 & 35 (1100V) |
Temp Range | -10 C to 70C |
Insulated Material | PVC / RUBBER |
Sheath Material | PVC / RUBBER |
Core | 3 & 4 Core |
- High conductivity
- Flexibility for wiring
- High insulation resistance
- Low conductor resistance
- Used as drop cable for submersible motors
