50 hz - Pompa Rekayasa - Seri BRP

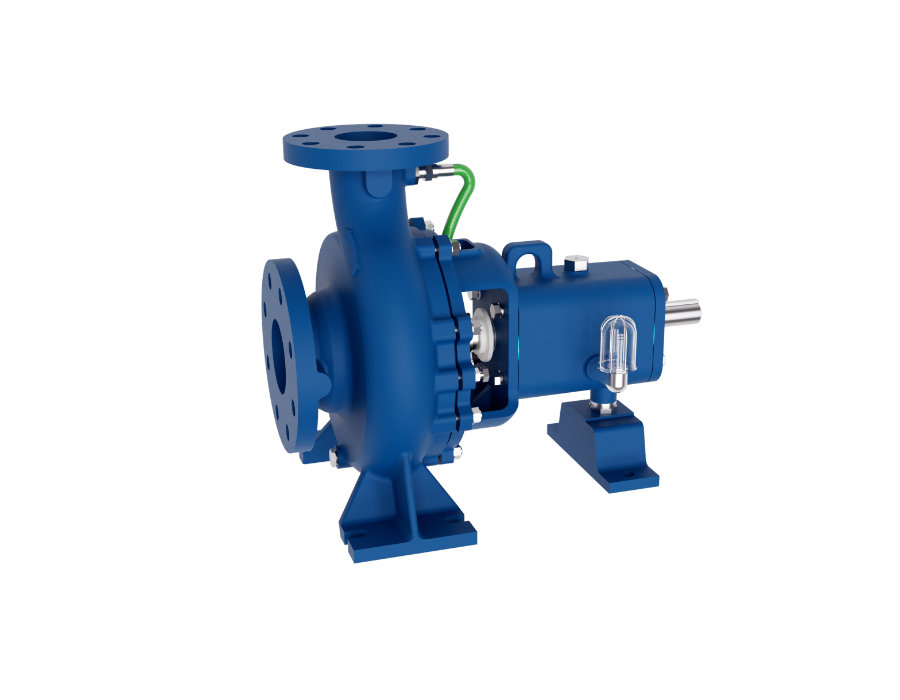

BRP Series

Description

BRP Series pumps are designed for customized cleaning solution especially for heat exchangers, condenser, pipe line etc. The foam balls are being re-circulated along with liquid to clean the inner portion of the system.

Specification

Standard	Manufacturer Standard
Head	upto 40m
Maximum Flow	upto 140m³/h
Speed	1450 / 1750RPM
Impeller Type	Enclosed Impeller
Outlet Size	80mm
Power	upto 18.5kW
Liquid Temperature	upto 90°C
Max Solid Size	Not applicable
Shaft Seal	Gland Packing, Mechanical Seal
Material of Construction (MOC)	Cast Iron, Stainless Steel & Alloy steel
Bearing Lubrication	Oil
Flange Standard	DIN
Maximum working Pressure	upto 16 bar

Features

Different material option
Enclosed impeller to handle soft balls
Swivelling bearing frame with foot support

Application

Cleaning of condesnser, heat exchanger and pipeline
