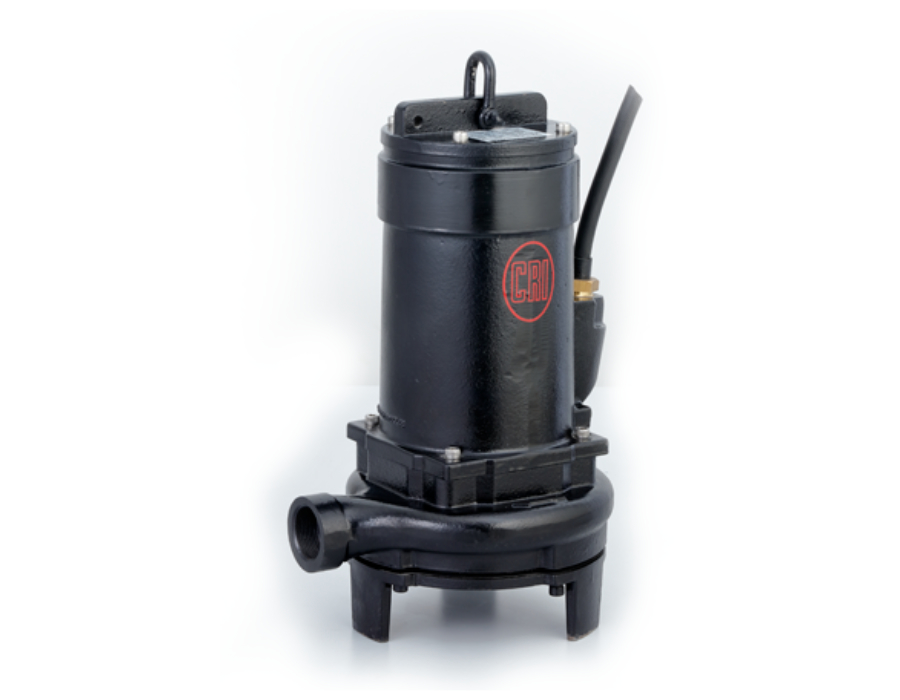

GT Series
GT Series pumps are designed to handle raw sewage, waste water and heavy duty industrial applications where the pump is subject to clogging from over sized materials. Cutter pumps are generally offered with vortex impeller. A cutting device and hard iron serrated casing cover provided in the pump to cut the incoming materials into pieces, permitting smooth passage through the pump into the discharge piping. A cutter pump’s job is also to reduce the size of the solids. Cutter pumps are typically used to address clogs and rags.
Maximum Flow | upto 30m³/h |
Head | upto 60m |
Speed | 2900 RPM |
Impeller Type | Vortex with cutter |
Outlet Size | 40 & 50 mm |
Power | upto 9.5kW |
Liquid Temperature | upto 40°C |
Max Solid Size | upto 7mm |
Shaft Seal | Mechanical seal |
Material of Construction (MOC) | CI with 0.3% Cu, Ni and Mo |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20m |
Maximum Working Pressure | upto 6bar |
- Minimized risk of clogging & minimum wear and tear

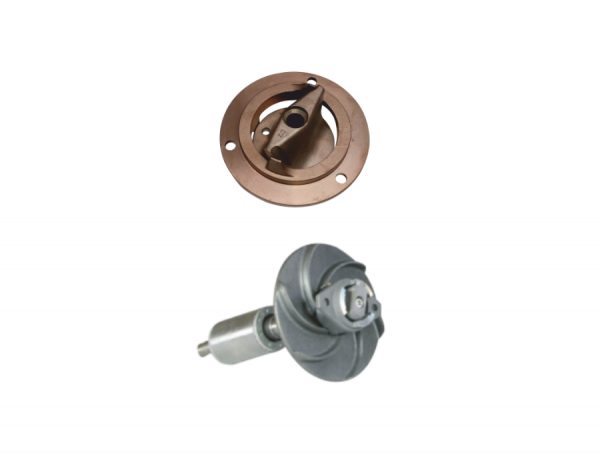

- Stainless steel cutter
- Serrated cover for grinding into small pieces
- Inbuilt thermal overload protector in specific ranges
- For pumping sewage liquids with suspended soilds
- Textile and food industry
- Hospitals and commercial building
