旋涡泵

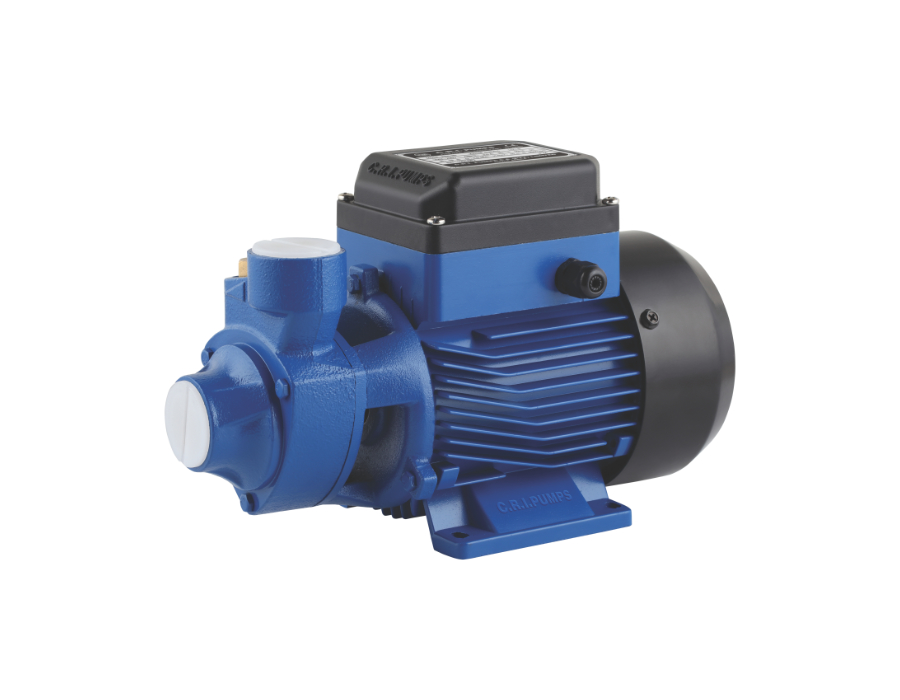

C.R.I Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eleminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.
功率范围(kW) | 0.37和0.75kW |
转速 | 2900 rpm |
版本 | 单相,230V,50Hz,交流电源 |
工作方式 | S1 连续工作 |
防护等级 | IP 54 |
绝缘等级 | B |
最大排放量 | 2.2 m³/h |
最大扬程 | 61m |
最大吸升高度 | 7 m |
密封类型 | 机械密封 |
最高液体温度 | 33°C |
最高环境温度 | 40°C |
最高工作压力 | 6 bar |
法兰标准 | 制造商标准 |
入水口法兰(单位:mm) | 25 |
出水口法兰规格(单位:mm) | 25 |
- 易于操作,结构坚固、紧凑。高温保护
- 住宅、花园、清洗系统。
