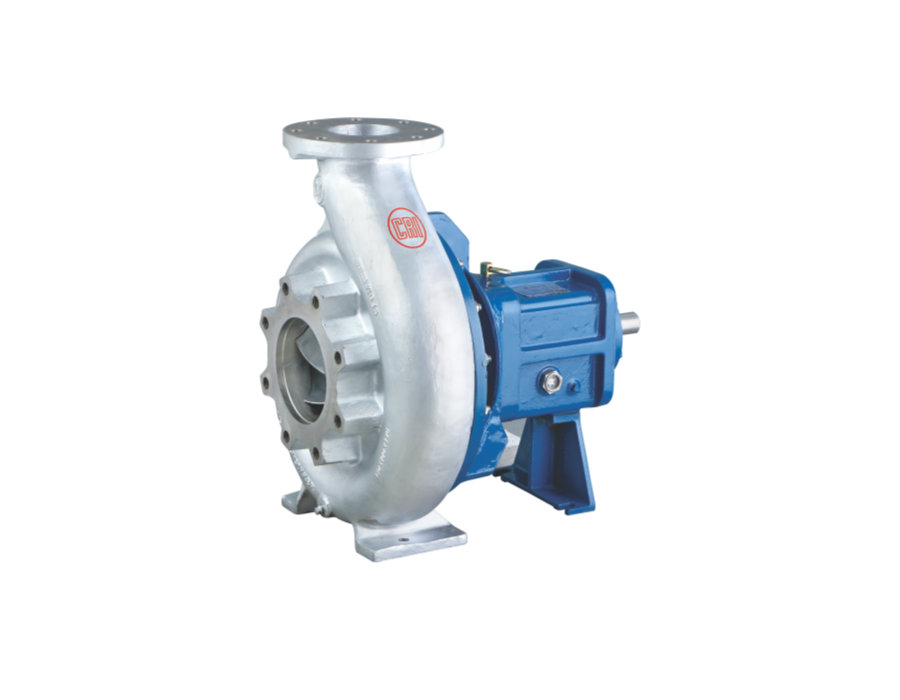

ECC Series
Single stage chemical process pumps are mainly used to handle different type of chemicals with slight impurities. These pumps are offered with different material of construction according to the liquid type. Dynamically balanced impeller ensures vibration and noise free operation for long life. Mounting and duties are in accordance with ANSI B73.1 suitable for continuous operation. To maintain impeller clearance external adjustment provision is provided to maintain required efficiency.
Standard | ANSI B73.1 |
Head | to 649ft |
Maximum Flow | to 4400gpm |
Speed | 1150/1700/3450 RPM |
Impeller Type | Semi Open Impeller |
Outlet Size | to 8″ |
Power | to 200HP |
Liquid Temperature | to 500°F |
Maximum Suspended Solid Size | to 2″ |
Shaft Seal | Gland Packing, Mechanical Seal |
Material of Construction (MOC) | Stainless Steel and Alloy steel |
Bearing Lubrication | Oil |
Flange Standard | ANSI B73.1 |
Maximum Working Pressure | to 20 bar |
- Back pull out design
- High efficiency & optimized performance reduces the operating cost
- Mounting dimensions and duties as per ANSI B73.1 standard
- Heavy duty bearing ensures long life
- Organic and inorganic chemical transfer
- High temperature chemical transfer
- Refined product and syrup transfer
- Solvent and alcohol transfer
