Drives & Controls

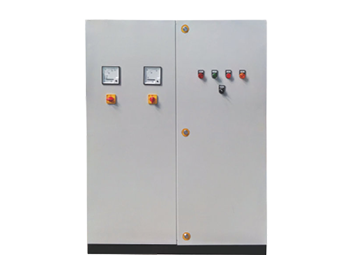

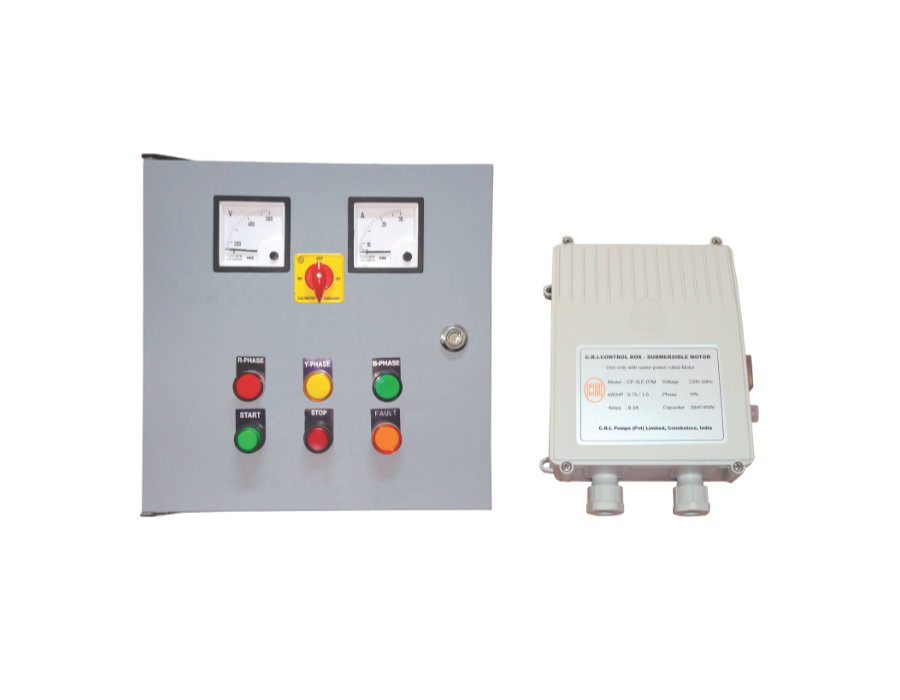

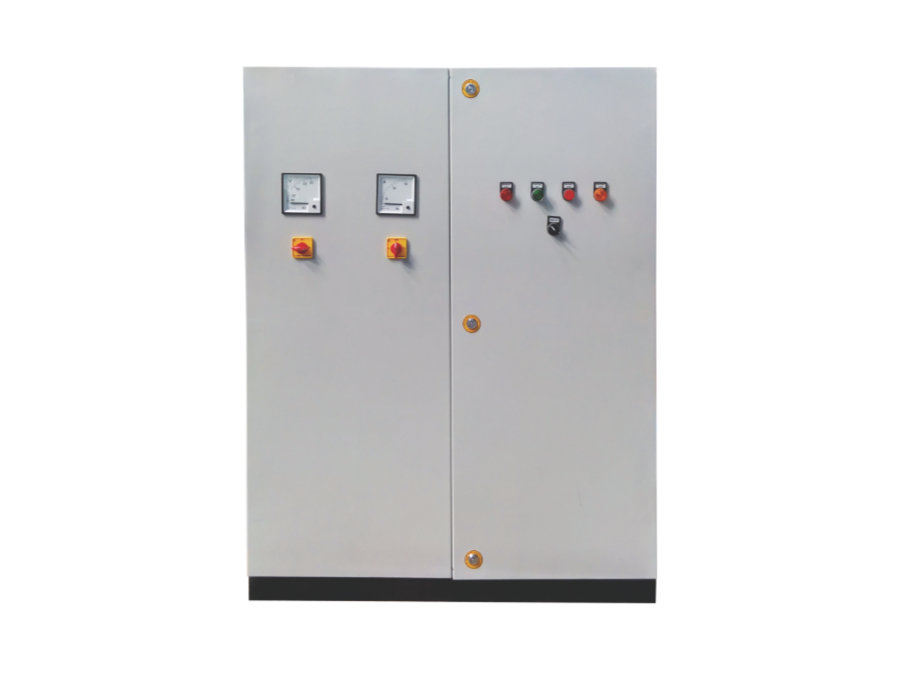

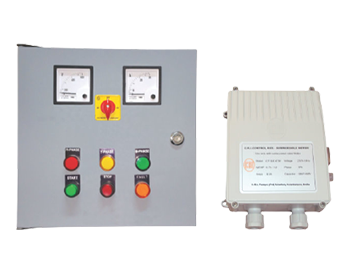

C.R.I control panels are made of quality components and designed with various features to give ultimate protection to the prime movers such as submersible motors and centrifugal pumps. Three -phase control panels are available with various protections which can be selected according to the control measures and features required
Specifications | Single Phase Control Box | Three Phase | DOL Starter | Star-Delta(SD) Starter | Impedance Starter | Soft Starter | Variable Frequency Drive(VFD) |
---|---|---|---|---|---|---|
Power Range | 0.37 kW - 2.2 kW | 0.37 kW - 93 kW | 0.37 kW - 350 kW | 0.37 kW - 185 kW | 0.37 kW - 530 kW | 0.37 kW - 18.5 kW |
Version | 220V , Single Phase,50Hz,A.C | 380V - 415V, Three Phase,50Hz,A.C | 380V - 415V, Three Phase,50Hz,A.C | 380V - 415V, Three Phase,50Hz,A.C | 380V - 415V, Three Phase,50Hz,A.C | 220V - 380V ,Three Phase,50Hz,A.C |
Type | "Capacitor Start & Run (CSR) Capacitor Start and " | - | - | - | - | - |
Ingress Protection | IP 52 | Standard - IP 52 Optional - IP 55 & 65 |
Standard - IP 52 Optional - IP 55 & 65 |
Standard - IP 52 Optional - IP 55 |
Standard - IP 52 Optional - IP 55 |
IP 42 |
