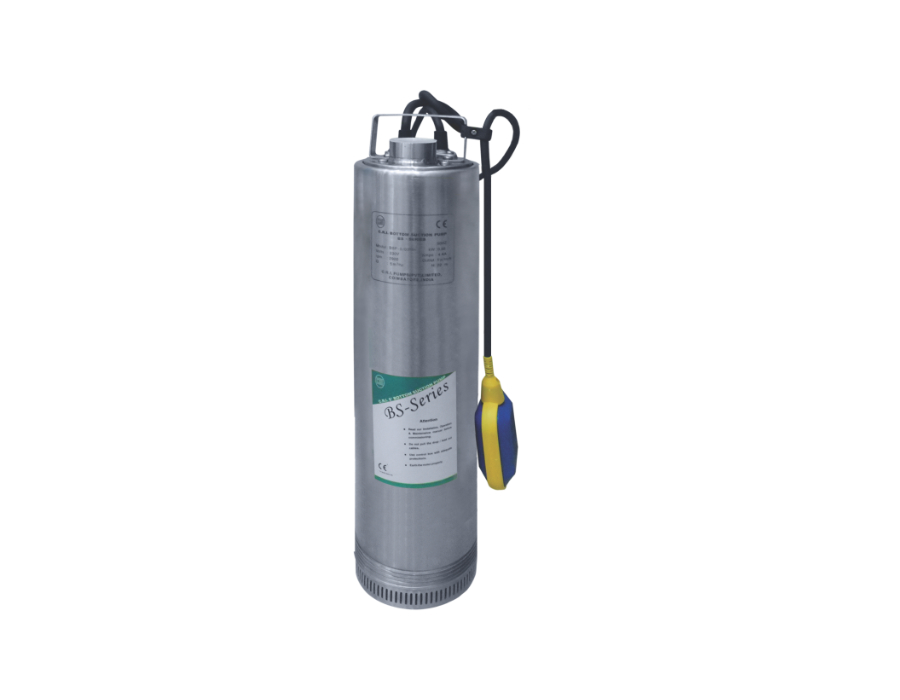

BS Series
C.R.I. BS Series Bottom Suction pumps are multistage type supplied with engineering thermoplastic radial flow impellers and diffusers for higher head requirement. No suction and priming problems as it is submerged in water. Its unique bottom suction design ensures effective draining of water almost to the ground level. The motor is of dry type with F class insulation for reliable service. Highly resistant mechanical seal ensures reliability and trouble free service for long life. Single phase pumps are supplied with control box and float switch as default. Each pump is supplied with 15m power cable to eliminate the joint.
Nominal Diameter | Bottom Suction Pumps |
Power Range in kW | 0.37 – 1.1 kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate in m | 6 m³/h |
Maximum Head in Metre | 91m |
Outlet Sizes in Inches | 1¼” |
- Default Float switch to avoid dry running, most reliable mechanical seal
- Self cooling motor design
- Corrosion free parts
- 15m lead out cable to eliminate the joint
- Residence
- Utility application in buildings and industries
- Emptying the sump
- Gardening and landscape
