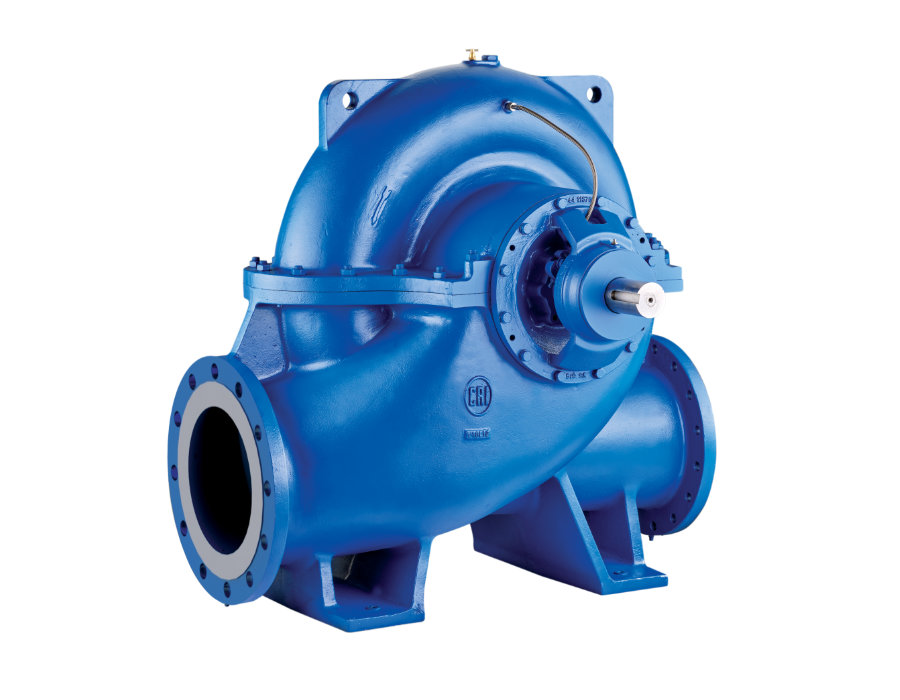

SCW Series
Horizontal Split Case single stage double suction centrifugal pumps are designed to deliver higher rate of flow at designed operating head. Double suction impeller with between bearing design provides hydraulic balance, hence eliminating axial thrust. The casing is split axially with opposing suction and discharge flanges greatly simplifying maintenance. The inline suction and discharge nozzles are cast in the lower half casing. This design makes it easy to remove the upper casing and rotary components without disturbing the motor and pipe work.
Standard | Manufacturer Standard |
Head | upto 170m |
Maximum Flow | upto 4200m³/h |
Speed | 960/1450/2900RPM |
Impeller Type | Enclosed double suction impeller |
Outlet Size | upto 450mm |
Power | upto 1460kW |
Liquid Temperature | upto 90°C |
Max Solid Size | Not applicable |
Shaft Seal | Gland packing, Mechanical seal |
Material of Construction (MOC) | Cast iron, Bronze & Stainless steel |
Bearing Lubrication | Grease, Oil |
Flange Standard | DIN |
Maximum Working Pressure | upto 16 bar |
- Top pull out design
- Entire rotating unit assembly can be removed without disturbing pipe connection and prime mover
- Rigid and balanced design
- Double suction impeller
- Designed for maximum wear life
- Minimum down time and reduced life time costs
- Water supply
- Irrigation
- Fire protection
- HVAC systems
- Auxilliary and circulating cooling water supply in Power plants
- Cooling tower application in industries
- Water treatment plants
- Flood control
