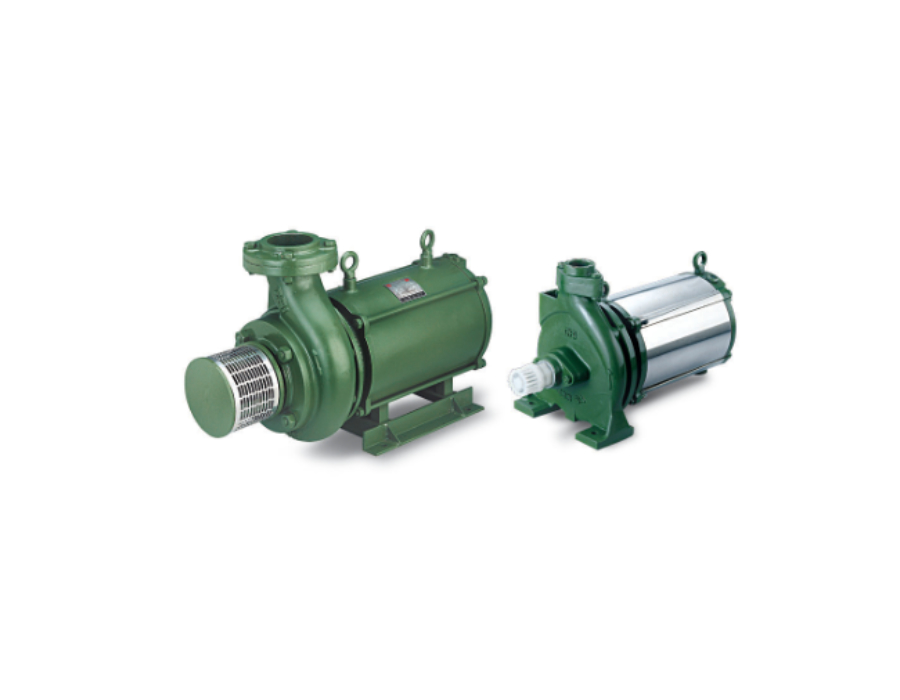

LH & LB series

Description

C.R.I. LH & LB Series pumps are horizontal openwell submersible type, specially designed for shallow well and sump applications. These pumps are available in single phase and three phase supplied with radial flow impellers. No suction and priming problems as it is submerged in water. The hydraulic portion is designed in effective way to give better efficiency. Dynamically balanced impeller and rotor ensures vibration and noise free operation. Specially designed thrust and bush bearings are used to withstand high axial and radial thrust loads.

Specification

Power Range in kW	0.75 – 18.5 kW
Speed in RPM	2900 RPM
Maximum Flow Rate in m³/h	221 m³/h
Maximum Head in Metre	80m
Outlet Sizes in Inches	1″ to 4″

Features

No suction & priming problem
Noiseless operation
High efficiency
Water lubricated bearings
Can be easily dismantled and repaired

Application

Residence
Agriculture
Sprinkler and pivot Irrigation
Utility application in building and industries
Water supply
