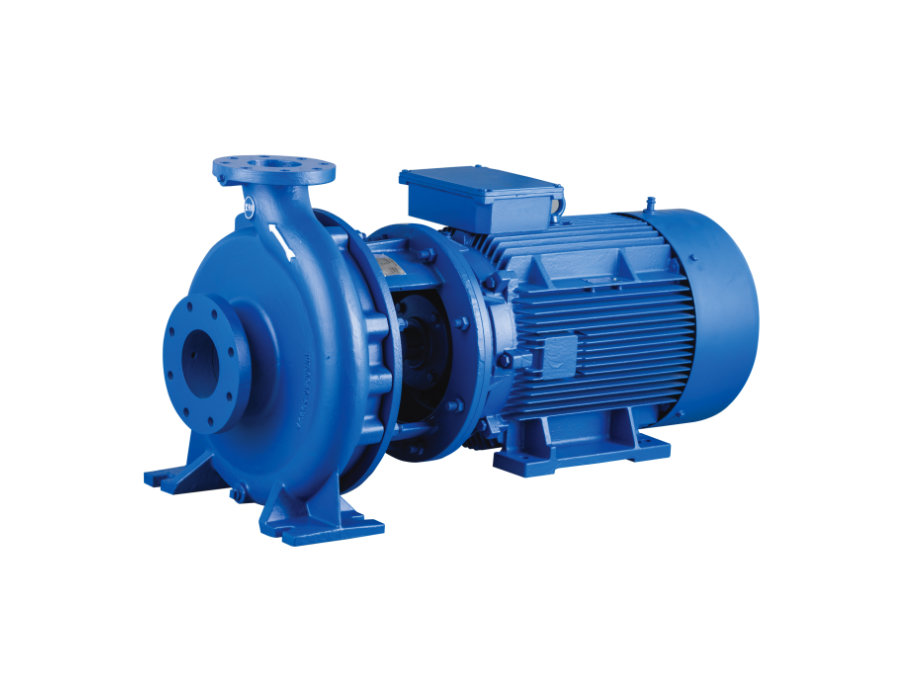

CCW Series
Close coupled single stage, end suction centrifugal pumps in which the pump shaft will be directly coupled with standard induction motor by means of stub or split coupling. Close coupled design provides space savings and compact construction. It requires less space. A permanent rigid alignment in these pumps are done to eliminate the need for all other alignments. This in turn, prolongs seal and bearing life. Close coupled pumps are offered with standard and premium efficiency motors.
Standard | Manufacturer Standard |
Head | upto 95m |
Maximum Flow | upto 550m³/h |
Speed | 1450/2900RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | upto 150mm |
Power | upto 45kW |
Liquid Temperature | upto 90°C |
Max Solid Size | Not applicable |
Shaft Seal | Mechanical seal |
Material of Construction (MOC) | Cast Iron, Bronze, Stainless Steel & Alloy steel |
Bearing Lubrication | Grease |
Flange Standard | DIN |
Maximum Working Pressure | upto 16 bar |
- Default mechanical seal option
- High operating efficiency
- Wide hydraulic ranges
- Pre lubricated sealed bearing ensures long life
- Water supply
- Irrigation
- Pressure boosting
- Heating, ventilation and air conditioning system
- Fire fighting systems
- Circulation and transfer application
- Utility services in building and industries
