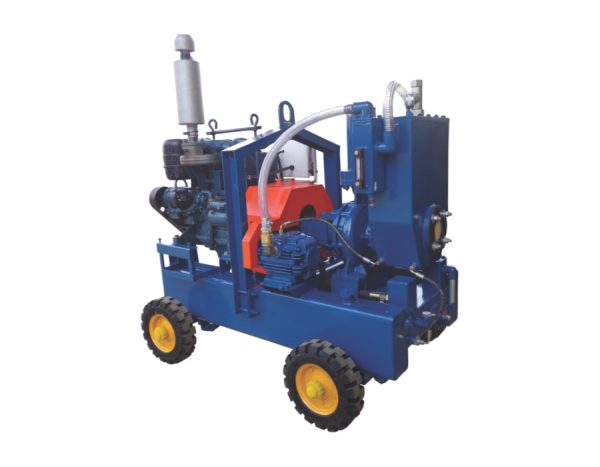

Well Point and Dewatering Pumps – WD Series
WD series skid mounted well point and general-purpose dewatering pumps are designed to handle raw water, muddy water, sewage and liquid with semi solids. These pumps are equipped with vacuum pump and priming tank for automatic self-priming and re-priming action. The fuel tank is designed to give uninterrupted fuel supply for 24 hours operation. These pumps are offered with off highway four-wheel solid rubber tyres. The custom-made double mechanical seal in pump provides perfect sealing and leak free operation. Oil bath type stuffing box ensure the durability of mechanical seal and prevents dry run during initial start-up.
Standard | Manufacturer Standard |
Head | to 115ft |
Maximum Flow | to 2200gpm |
Speed | 1700 RPM |
Impeller Type | Enclosed Impeller |
Outlet Size | 4″, 6″ & 8″ |
Power | to 65HP |
Liquid Temperature | to 122°F |
Max Solid Size | to 1″ |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | Cast Iron & Stainless steel |
Bearing Lubrication | Oil |
Flange Standard | ANSI |
Maximum Working Pressure | to 16 bar |
- Customized engine option with air cooled or water cooled engines
- Diesel tank for 24 hours fuel back up
- Double face mechanical seal for perfect sealing
- Inbuilt automatic self-priming
- High way and off high way trolley option
- Municipal utility
- Flood control
- Emergency pumping
- Marine
- Dewatering in construction and mining
