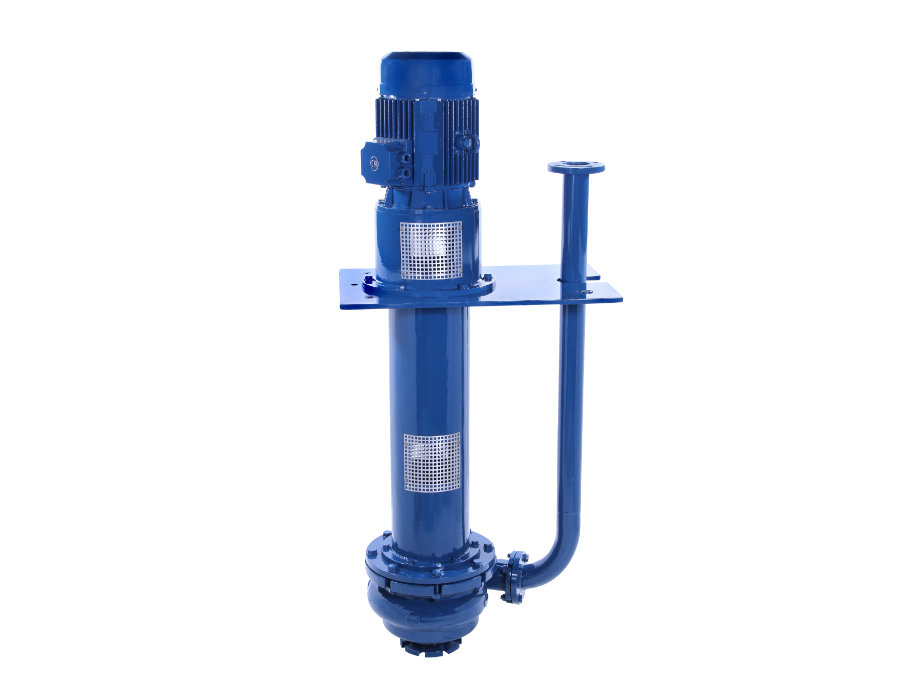

Vertical Sump Pumps
End suction pumps can be supplied in vertical execution as sump pump to handle different type of liquid for various applications in industries. These pumps are offered with enclosed or semi open impeller with different materials of construction. Maximum suspended length is limited to 5m.
Standard | Manufacturer Standard |
Head | to 360ft |
Maximum Flow | to 11007gpm |
Speed | 900/1150/1700/3450 RPM |
Impeller Type | Semi open/Enclosed |
Outlet Size | to 10″ |
Power | to 286HP |
Liquid Temperature | to 212°F |
Max Solid Size | to 2½” |
Shaft Seal | Standard – No seal, Optional – Mechanical seal for hazardous liquids |
Material of Construction (MOC) | Cast Iron,Bronze & Stainless steel |
Bearing Lubrication | Line shaft – Self & External Lubrication Thrust Bearing – Grease or Oil |
Flange Standard | ANSI |
Maximum Working Pressure | 16 bar |
- Compact and space saving construction
- Designed to meet specific lengths & application requirement
- Pump shaft provided with cutless rubber and composite bearings
- Blow down application in industries
- Waste water draining & basins
- Low density slurry & sludge transfer
- Utility services in industries
- Auxiliary and emergency oil pump in power plant
- Water treatment plant applications
