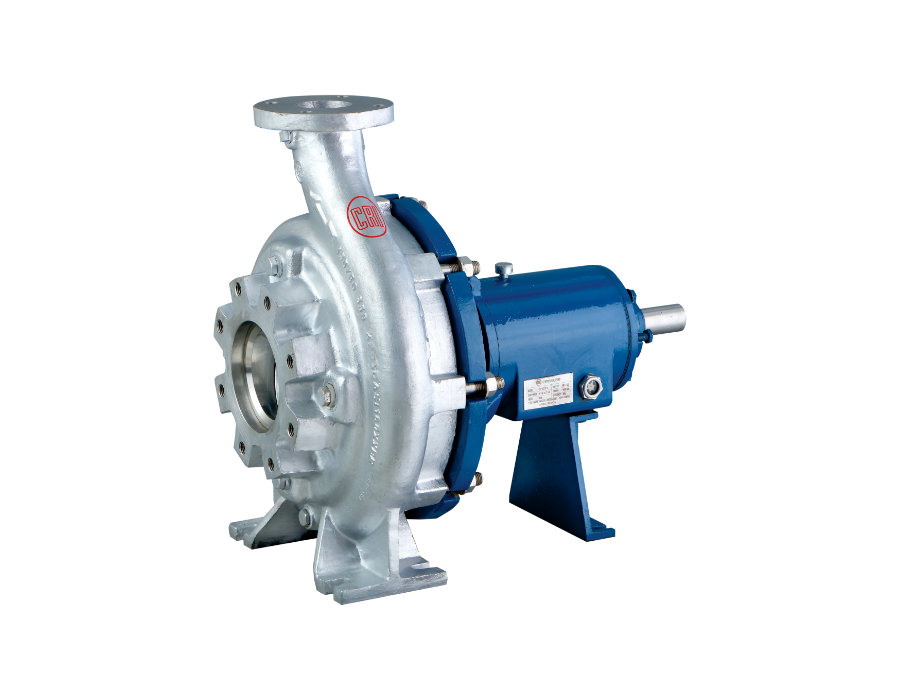

ECP Series
Medium consistency pulp and process pumps are used to handle different type of syrup, molasses, pulp, paper stock, raw water etc and it can be used maximum consistencies upto 8%. Dynamically balanced semi open impeller ensures vibration and noice free operation for long life and replaceable wear plate used to maintain optimum clearance between impeller and wear plate. To maintain impeller clearance external adjustment provision is provided to maintain required efficiency.
Standard | Manufacturer Standard |
Head | to 311ft |
Maximum Flow | to 15850gpm |
Speed | 1150/1700/3450 RPM |
Impeller Type | Semi Open Impeller |
Outlet Size | to 14″ |
Power | to 420HP |
Liquid Temperature | to 194°F |
Max Solid Size | to 3¾” |
Shaft Seal | Gland Packing, Mechanical Seal |
Material of Construction (MOC) | Cast Iron, Stainless steel & Alloy Steel |
Bearing Lubrication | Oil |
Flange Standard | ANSI |
Maximum working Pressure | to 16 bar |
- Back Pull out Design
- High Efficiency
- Non Clog Semi open impeller with Bull Nose ensures that smooth entry of liquid with fibrous Solids.
- Handle Consistencies upto 8%.
- External Impeller Adjustments to maintain Optimum Hydraulic performance.
- Paper Stock & Fibrous Pulp.
- White, Black & green liquors.
- Handling food pulp.
- Non API 610 Chemical, Process & Fibrous Effluents.
- Low Density Slurry & Sludge
