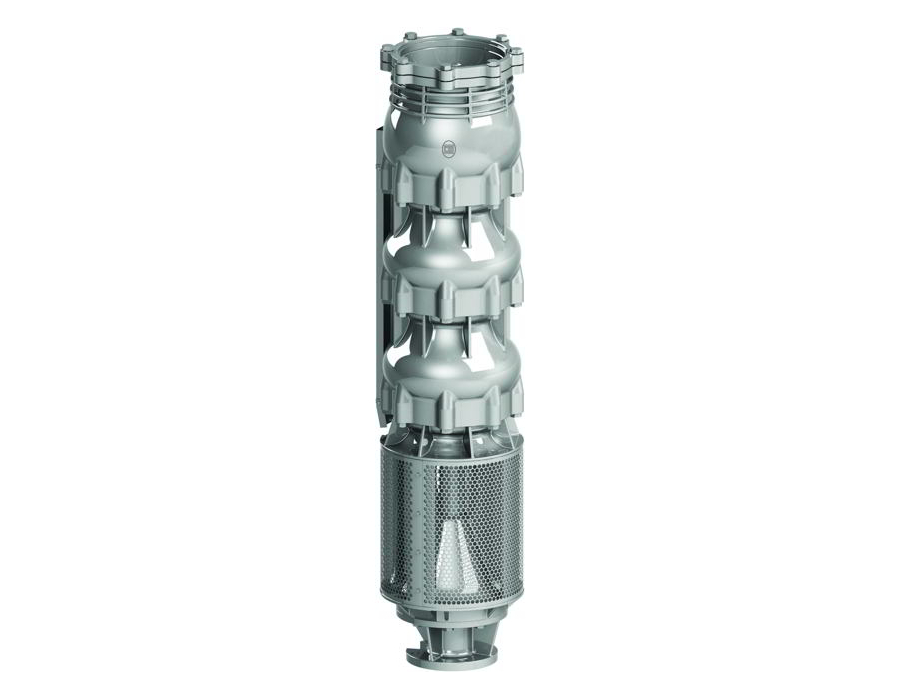

14″ Stainless Steel Grand Series
C.R.I. Stainless steel grand series deep well / bore hole submersible pumps are single or multistage type supplied with mixed flow impellers for higher flow and head requirement. These pumps are made up of corrosion resistant stainless steel material for long life. The pump shaft is supported with radial bearing on each casing / bowl for prolonged life and trouble free operation. And also, we provide neck / wear ring on casing to maintain close clearance for better efficiency and to minimise the wear and tear. Built in check valve prevents back flow and reduces the risk of water hammer effect. All mounting dimension of pumps are in accordance with International standards.
Specification | 14″ Casted Stainless Steel Submersible Pumps |
Power Range in HP | 150HP – 400HP |
Speed in RPM | 3450 rpm |
Maximum Flow Rate in US gpm | Upto 3652 gpm |
Maximum Head in ft | Upto 574 ft |
Outlet Sizes in Inches | 9″ |
- High efficiency
- Wide hydraulic ranges
- Corrosion resistant stainless steel pump components
- Bush bearing support in each casing
- Rigid and rugged construction
- Water supply
- Industries
- Agriculture
- Commercial buildings
- Pressure boosting
- Livestock watering
- Fire fighting
- Sprinkler system
- Construction & mining De-watering
